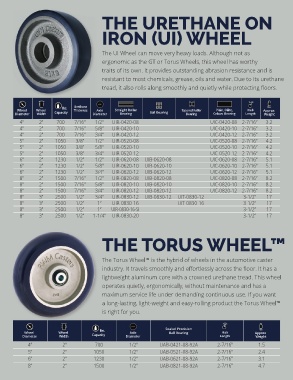

Page 4 - RWM Catalog Interior FINAL 03202017 R4

ITRHOENU(RUEI)TWHAHNEEELON

The UI Wheel can move very heavy loads. Although not as
ergonomic as the GT or Torus Wheels, this wheel has worthy
traits of its own. It provides outstanding abrasion resistance and is
resistant to most chemicals, grease, oils and water. Due to its urethane
tread, it also rolls along smoothly and quietly while protecting floors.

Wheel Wheel lbs. Urethane Axle Straight Roller Ball Bearing Tapered Roller Plain, Oilite, Hub Approx
Diameter Width Capacity Thickness Diameter Bearing Bearing Celcon Bearing Length Weight
UIB-0620-08
4” 2” 700 7/16” 1/2” UIR-0420-08 UIB-0620-10 UIT-0830-12 UIC-0420-08 2-7/16” 3.2
4” 2” 700 7/16” 5/8” UIR-0420-10 UIB-0620-12 UIT-0830-16 UIC-0420-10 2-7/16” 3.2
4” 2” 700 7/16” 3/4” UIR-0420-12 UIB-0820-08 UIC-0420-12 2-7/16” 3.2
5” 2” 1050 3/8” 1/2” UIR-0520-08 UIB-0820-10 UIC-0520-08 2-7/16” 4.2
5” 2” 1050 3/8” 5/8” UIR-0520-10 UIB-0820-12 UIC-0520-10 2-7/16” 4.2
5” 2” 1050 3/8” 3/4” UIR-0520-12 UIB-0830-12 UIC-0520-12 2-7/16” 4.2
6” 2” 1230 1/2” 1/2” UIR-0620-08 UIC-0620-08 2-7/16” 5.1
6” 2” 1230 1/2” 5/8” UIR-0620-10 UIC-0620-10 2-7/16” 5.1
6” 2” 1230 1/2” 3/4” UIR-0620-12 UIC-0620-12 2-7/16” 5.1
8” 2” 1500 7/16” 1/2” UIR-0820-08 UIC-0820-08 2-7/16” 8.2
8” 2” 1500 7/16” 5/8” UIR-0820-10 UIC-0820-10 2-7/16” 8.2
8” 2” 1500 7/16” 3/4” UIR-0820-12 UIC-0820-12 2-7/16” 8.2
8” 3” 2500 1/2” 3/4” UIR-0830-12 3-1/2” 17
8” 3” 2500 1/2” 1” UIR-0830-16 3-1/2” 17
8” 3” 2500 1/2” 1” UIR-0830-16-SI 3-1/2” 17
8” 3” 2500 1/2” 1-1/4” UIR-0830-20 3-1/2” 17

THE TORUS WHEEL™

The Torus Wheel™ is the hybrid of wheels in the automotive caster
industry. It travels smoothly and effortlessly across the floor. It has a
lightweight aluminum core with a crowned urethane tread. This wheel
operates quietly, ergonomically, without maintenance and has a
maximum service life under demanding continuous use. If you want
a long-lasting, light-weight and easy-rolling product the Torus Wheel™
is right for you.

Wheel Wheel lbs. Axle Sealed Precision Hub Approx
Diameter Width Capacity Diameter Ball Bearing Length Weight

4” 2” 700 1/2” UAB-0421-08-92A 2-7/16” 1.5
5” 2” 1050 1/2” UAB-0521-08-92A 2-7/16” 2.4
6” 2” 1230 1/2” UAB-0621-08-92A 2-7/16” 3.1
8” 2” 1500 1/2” UAB-0821-08-92A 2-7/16” 4.7
