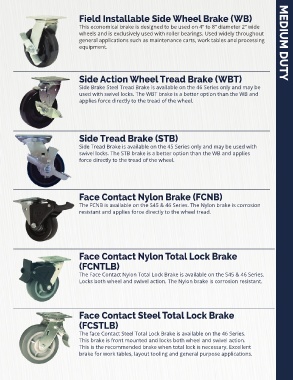

Page 3 - brake flyer

Field Installable Side Wheel Brake (WB) MEDIUM DUTY

This economical brake is designed to be used on 4” to 8” diameter 2” wide
wheels and is exclusively used with roller bearings. Used widely throughout
general applications such as maintenance carts, work tables and processing
equipment.

Side Action Wheel Tread Brake (WBT)

Side Brake Steel Tread Brake is available on the 46 Series only and may be
used with swivel locks. The WBT brake is a better option than the WB and
applies force directly to the tread of the wheel.

Side Tread Brake (STB)

Side Tread Brake is available on the 45 Series only and may be used with
swivel locks. The STB brake is a better option than the WB and applies
force directly to the tread of the wheel.

Face Contact Nylon Brake (FCNB)

The FCNB is available on the S45 & 46 Series. The Nylon brake is corrosion
resistant and applies force directly to the wheel tread.

Face Contact Nylon Total Lock Brake
(FCNTLB)

The Face Contact Nylon Total Lock Brake is available on the S45 & 46 Series.
Locks both wheel and swivel action. The Nylon brake is corrosion resistant.

Face Contact Steel Total Lock Brake
(FCSTLB)

The face Contact Steel Total Lock Brake is available on the 46 Series.
This brake is front mounted and locks both wheel and swivel action.
This is the recommended brake when total lock is necessary. Excellent
brake for work tables, layout tooling and general purpose applications.
