2-76 Series Casters
Kingpinless Dual Wheel Casters
RWM’s 2-76 Series Kingpinless™ Dual Wheel Casters feature all of the benefits of our patented Kingpinless™ raceway and offer twice the capacity load. Dual wheel casters offer high weight capacities with minimal overall heights, better load distribution, floor protection and mobility than single wheel casters. This is a result of spreading the weight over a wider floor area while offering wheel differential action, resulting in less friction between the wheels and the floor, requiring less effort for the caster to swivel. Our 2-76 Series Casters are proudly made in the USA!
Features
| Raceway Design | Patented Kingpinless™ single ball bearing precision machined raceway hardened to 53 Rockwell C minimum. Swivel section features a 3″ diameter raceway with 1/2″ ball bearings. Notched yoke is standard. |
| Capacity | Up to 7000 lbs. |
| Leg Thickness | 3 / 8” |
| Axle | 3 / 4” bolt with lock or slotted nut as required. |
| Finish | Laguna blue powder coat |
| Wheels | Wheels are available with either a 1” roller bearing which rotates on a hardened and ground spanner brushing or¾” tapered bearings that rotate on the axle.All wheels are equipped with lubricated fitting. |
| Mounting Plate Size | 5-1/4″ x 7-1/4″ x 3/8″ |
| Bolt Hole Spacing | 3-3/8″ x 5-1/4″, slotted to 4-1/8″ x 6-1/8 |
| Mounting Bolt Diameter | 1/2” |
Applications
| Tow Line | Boat & ship molding and building |
| Abusive Conditions | Storage tanks & gantries |
| Automotive | Shock load applications |
| Aerospace | Production line dollies |
| Metal fabricating | Heavy machinery |
| Military equipment | Mobile Homes |
| Tractor pulled trailers | Extreme duty platform trucks |
| Air cargo & ground support equipment | Heavy-duty processing equipment |
STANDARD
75ST*/75RT*
90ST**/90RT
95ST**/95RT
*Deduct 1/16" from caster overall height when using this top plate.
** Add 1/8" to caster overall height when using this top plate.

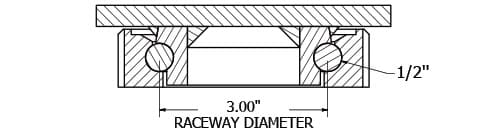

Kingpinless Raceway Diagram
BRAKES
| CWB | Cam Wheel Brake |
| PCWB | Poly Cam Wheel Brake |
SWIVEL LOCKS
| DSL | Demountable Swivel Lock |
| LSL | L-Type Swivel Lock |
| SL | Swivel Lock |
| VSL | Vertical Swivel Lock |
LUBRICATIONS
| HT | High Temperature Lubrication |
| LT | Low Temperature Lubrication |
GUARDS, FINISHES AND SEALS
| FG | Foot Guard |
| HTP | High Temperature Paint |
| SR | Sealed Swivel Raceway |
| SWP | Sweeper Brush |
| ZP | Zinc Plated |
Specifications
2-76 Series Casters
| WHEEL DIAMETER | WHEEL WIDTH | CAPACITY | WHEEL TYPE | OVERALL HEIGHT | STRAIGHT ROLLER BEARING | BALL BEARING | TAPERED BEARING | SWIVEL LEAD | APPROX WEIGHT |
|---|---|---|---|---|---|---|---|---|---|
| 6" | 2-1/2″ | 1080 | Rubber on Iron | 8-1/16″ | 2-76-RIR-0625-S | 2-1/16″ | 36.5 | ||
| 6" | 2-1/2″ | 2160 | Rubber on Iron-EHT | 8-1/16″ | 2-76-RIR-0625-S-EHT | 2-76-RIT-0625-S-EHT | 2-1/16″ | 36.5 | |
| 6" | 2-1/2″ | 3200 | Durastan | 8-1/16″ | 2-76-DUR-0625-S | 2-1/16″ | 21.7 | ||
| 6" | 2-1/2″ | 3240 | Urethane on Iron | 8-1/16″ | 2-76-UIR-0625-S | 2-76-UIT-0625-S | 2-1/16″ | 39.5 | |
| 6" | 2-1/2″ | 3600 | Cast Iron | 8-1/16″ | 2-76-CIR-0625-S | 2-76-CIT-0625-S | 2-1/16″ | 37 | |
| 6" | 2-1/2″ | 4600 | GT | 8-1/16″ | 2-76-GTB-0625-S | 2-1/16″ | 21 | ||
| 6" | 3″ | 1360 | Rubber on Iron | 8-1/16″ | 2-76-RIR-0630-S | 2-1/16″ | 33 | ||
| 6" | 3″ | 2720 | Rubber on Iron-EHT | 8-1/16″ | 2 - 76 - RIR - 0630 - S - EHT | 2-76-RIT-0630-S-EHT | 2-1/16″ | 33 | |
| 6" | 3″ | 4000 | Durastan | 8-1/16″ | 2-76-DUR-0630-S | 2-1/16″ | 24 | ||
| 6" | 3″ | 4000 | Solid Urethane | 8-1/16″ | 2-76-MUB-0630-S | 2-1/16″ | 24 | ||
| 6" | 3″ | 4000 | Urethane on Iron | 8-1/16″ | 2-76-UIR-0630-S | 2-76-UIT-0630-S | 2-1/16″ | 33 | |
| 6" | 3″ | 6000 | Cast Iron | 8-1/16″ | 2-76-CIR-0630-S | 2-76-CIT-0630-S | 2-1/16″ | 39 | |
| 6" | 3″ | 7000 | Nylatron HD | 8-1/16″ | 2-76-NYB-0630-S | 2-1/16″ | 22 | ||
| 8" | 2-1/2″ | 1340 | Rubber on Iron | 10-1/2'' | 2-76-RIR-0825-S | 2-3/4″ | 41.5 | ||
| 8" | 2-1/2″ | 2680 | Rubber on Iron-EHT | 10-1/2'' | 2-76-RIR-0825-S-EHT | 2-76-RIT-0825-S-EHT | 2-3/4″ | 41.5 | |
| 8" | 2-1/2″ | 3600 | Urethane on Iron | 10-1/2'' | 2-76-UIR-0825-S | 2-76-UIT-0825-S | 2-3/4″ | 48.5 | |
| 8" | 2-1/2″ | 4000 | Cast Iron | 10-1/2'' | 2-76-CIR-0825-S | 2-76-CIT-0825-S | 2-3/4″ | 52 | |
| 8" | 2-1/2″ | 4000 | Durastan | 10-1/2'' | 2-76-DUR-0825-S | 2-3/4″ | 29 | ||
| 8" | 2-1/2″ | 4800 | GT | 10-1/2'' | 2-76-GTB-0825-S | 2-3/4″ | 28 | ||
| 8" | 3″ | 1680 | Rubber on Iron | 10-1/2'' | 2-76-RIR-0830-S | 2-3/4″ | 52 | ||
| 8" | 3″ | 3000 | Rubber on Aluminum-EHT | 10-1/2'' | 2-76-RAB-0830-S-EHT | 2-76-RAT-0830-S-EHT | 2-3/4″ | 42 | |
| 8" | 3″ | 3360 | Rubber on Iron-EHT | 10-1/2'' | 2-76-RIR-0830-S-EHT | 2-76-RIT-0830-S-EHT | 2-3/4″ | 52 | |
| 8" | 3″ | 5000 | Durastan | 10-1/2'' | 2-76-DUR-0830-S | 2-3/4″ | 28 | ||
| 8" | 3″ | 5000 | Solid Urethane | 10-1/2'' | 2 - 76 - MUB - 0830 - S - EHT | 2-3/4″ | 28 | ||
| 8" | 3″ | 5000 | Urethane on Iron | 10-1/2'' | 2-76-UIR-0830-S | 2-76-UIT-0830-S | 2-3/4″ | 52 | |
| 8" | 3″ | 6000 | Cast Iron | 10-1/2'' | 2-76-CIR-0830-S | 2-76-CIT-0830-S | 2-3/4″ | 49 | |
| 8" | 3″ | 7000 | Nylatron HD | 10-1/2'' | 2-76-NYB-0830-S | 2-3/4″ | 29 | ||
| 10" | 2-1/2″ | 1580 | Rubber on Iron | 12-1/2'' | 2-76-RIR-1025-S | 2-76-RIT-1025-S | 3-1/4″ | 47.5 | |
| 10" | 2-1/2″ | 3160 | Rubber on Iron-EHT | 12-1/2'' | 2-76-RIR-1025-S-EHT | 2-76-RIT-1025-S-EHT | 3-1/4″ | 47.5 | |
| 10" | 2-1/2″ | 4740 | Urethane on Iron | 12-1/2'' | 2-76-UIR-1025-S | 2-76-UIT-1025-S | 3-1/4″ | 58.5 | |
| 10" | 2-1/2″ | 5000 | Cast Iron | 12-1/2'' | 2-76-CIR-1025-S | 2-76-CIT-1025-S | 3-1/4″ | 63.5 | |
| 10" | 2-1/2″ | 5000 | Durastan | 12-1/2'' | 2-76-DUR-1025-S | 3-1/4″ | 30.5 | ||
| 10" | 3″ | 2000 | Rubber on Iron | 12-1/2'' | 2-76-RIR-1030-S | 2-76-RIT-1030-S | 3-1/4″ | 61 | |
| 10" | 3″ | 4000 | Rubber on Aluminum-EHT | 12-1/2'' | 2-76-RAB-1030-S-EHT | 2-76-RAT-1030-S-EHT | 3-1/4″ | 61 | |
| 10" | 3″ | 4000 | Rubber on Iron-EHT | 12-1/2'' | 2-76-RIR-1030-S-EHT | 2-76-RIT-1030-S-EHT | 3-1/4″ | 61 | |
| 10" | 3″ | 5800 | Durastan | 12-1/2'' | 2-76-DUR-1030-S | 3-1/4″ | 31 | ||
| 10" | 3″ | 6000 | Solid Urethane | 12-1/2'' | 2-76-MUB-1030-S | 3-1/4″ | 31 | ||
| 10" | 3″ | 6000 | Urethane on Iron | 12-1/2'' | 2-76-UIR-1030-S | 2-76-UIT-1030-S | 3-1/4″ | 61 | |
| 10" | 3″ | 6800 | GT | 12-1/2'' | 2-76-GTB-1030-S | 3-1/4″ | 31 | ||
| 10" | 3″ | 6800 | Ultra Thick Urethane | 12-1/2'' | 2-76-UTR-1030-S | 2-76-UTT-1030-S | 3-1/4″ | 64 | |
| 10" | 3″ | 7000 | Nylatron HD | 12-1/2'' | 2-76-NYB-1030-S | 3-1/4″ | 32 | ||
| 12" | 2-1/2″ | 1800 | Rubber on Iron | 15-1/2'' | 2-76-RIR-1225-S | 2-76-RIT-1225-S | 4-1/8″ | 55.5 | |
| 12" | 2-1/2″ | 5400 | Urethane on Iron | 15-1/2'' | 2-76-UIR-1225-S | 2-76-UIT-1225-S | 4-1/8″ | 76.2 | |
| 12" | 2-1/2″ | 6000 | Durastan | 15-1/2'' | 2-76-DUR-1225-S | 4-1/8″ | 44.5 | ||
| 12" | 3″ | 2280 | Rubber on Iron | 15-1/2'' | 2-76-RIR-1230-S | 2-76-RIT-1230-S | 4-1/8″ | 88 | |
| 12" | 3″ | 4560 | Rubber on Aluminum-EHT | 15-1/2'' | 2-76-RAB-1230-S-EHT | 2 - 76 - RAB - 1230 - S - EHT | 4-1/8″ | 88 | |
| 12" | 3″ | 4560 | Rubber on Iron-EHT | 15-1/2'' | 2-76-RIR-1230-S-EHT | 2-76-RIT-1230-S-EHT | 4-1/8″ | 88 | |
| 12" | 3″ | 6800 | Urethane on Iron | 15-1/2'' | 2-76-UIR-1230-S | 2-76-UIT-1230-S | 4-1/8″ | 88 | |
| 12" | 3″ | 7000 | Cast Iron | 15-1/2'' | 2-76-CIR-1230-S | 2-76-CIT-1230-S | 4-1/8″ | 88 | |
| 12" | 3″ | 7000 | Durastan | 15-1/2'' | 2-76-DUR-1230-S | 4-1/8″ | 34 | ||
| 12" | 3″ | 7000 | Ultra Thick Urethane | 15-1/2'' | 2-76-UTR-1230-S | 2-76-UTT-1230-S | 4-1/8″ | 101 |
To order a rigid caster, change the “S” to “R” in the model number. For example: “2-76-CIR-0630-R”. To order rig only, omit the bold letters. For example: “2-76-0630-S”. Dimensions shown are nominal. If precise dimensions are required, consult your RWM representative. For approximate weight of our rigid casters, deduct 5.4 pounds per item.
