95 Series Casters
Heavy-Duty Kingpinless Casters
RWM’s 95 Series caster features the patented Kingpinless™ caster design. This is the design that RWM patented, and that has proven itself to be the best solution for demanding applications. This is the caster design that all others are now copying because it is simply unmatched in extending service life, reducing all possible causes for caster failure. The 95 Series offers a capacity up to 20,000 pounds with a wide variety of heavy-duty wheels to maximize capacity. Our 95 Series Casters are proudly made in the USA!
Features
| Raceway Design | 4-1/2” diameter with ¾” diameter carbon steel balls. Precision machined and hardened to 53 Rockwell C minimum scale. Load and thrust are accommodated by our patented Kingpinless™ design. Sealed raceway is standard. |
| Capacity | Up to 20000 lbs. |
| Leg Thickness | 3/8” formed steel |
| Axle | 3/4” bolt and nut for 3” wide, 1’ or 1-1/4” bolt and nut for 4” wide, 1-1/4” bolt and nut for 5” wide |
| Lubrication | Grease fitting in swivel and hub of wheel |
| Finish | Laguna blue powder coat |
| Wheels | 1” or 1-1/4” ” hardened and ground spanner bushing or ¾” tapered bearings that rotate on a ¾” axle. 4” and 5” wheels are available with either a 1-1/4” I.D. roller bearing which rotates on a hardened and ground spanner bushing or 1-1/4” tapered bearings which rotate on the axle. All wheels are equipped with lubricated fitting. |

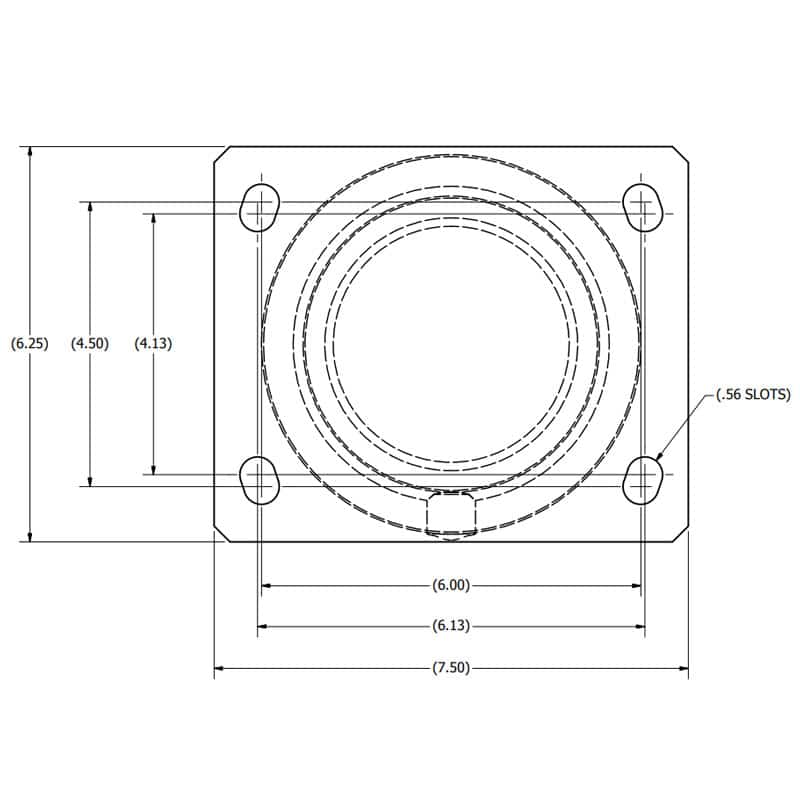

| Mounting Plate Size | 6-1/4” x 7-1/2” x 1/2” swivel top plate, 6” x 7-1/2” x 1/2” rigid top plate |
| Bolt Hole Spacing | 4-1/2” x 6”, slotted to 4-1/8” x 6-1/8” |
| Swivel Yoke Base | SAE 1045 hot steel forging |
| Swivel Top Plate | SAE 1045 hot steel forging |
| Bolt Hole Spacing | 1/2” |
Applications
| Tow Lines | Boat & ship molding and building |
| Abusive Conditions | Storage tanks & gantries |
| Automotive | Shock load applications |
| Aerospace | Production line dollies |
| Metal fabricating | Heavy machinery |
| Military equipment | Mobile homes |
| Tractor pulled trailers | Extreme duty platform trucks |
| Air cargo & ground support equipment | Heavy-duty processing equipment |
STANDARD
LMST

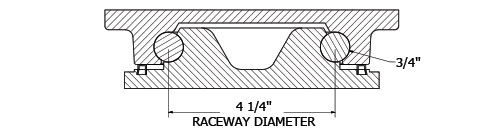

Kingpinless Raceway Diagram
BRAKES
| CWB | Cam Wheel Brake |
| PCWB | Poly Cam Wheel Brake |
SWIVEL LOCKS
| DSL | Demountable Swivel Lock |
| HDSL | Heavy Duty Demountable Swivel Lock |
| LSL | L-Type Swivel Lock |
| SL | Swivel Lock |
LUBRICATIONS
| HT | High Temperature Lubrication |
| LT | Low Temperature Lubrication |
FINISHES
| HTP | High Temperature Paint |
| ZP | Zinc Plated |
GUARDS, DISCS AND SWEEPERS
| FG | Foot Guard |
| NY | Notched Yoke |
| SD | Shear Disc (up to 3,600 lbs.) |
| SWP | Sweeper Brush |
| WS | Wheel Seats |
Specifications
95 Series Casters
| WHEEL DIAMETER | WHEEL WIDTH | CAPACITY | WHEEL TYPE | OVERALL HEIGHT | STRAIGHT ROLLER BEARING | BALL BEARING | TAPERED BEARING | SWIVEL LEAD | APPROX WEIGHT |
|---|---|---|---|---|---|---|---|---|---|
| 6" | 2-1/2″ | 2300 | GT | 8-1/2″ | 95-GTB-0625-S | 1-3/4″ | 17 | ||
| 6" | 2-1/2″ | 5000 | Forged Steel | 8-1/2″ | 95-FSR-0625-S | 95-FST-0625-S | 1-3/4″ | 23 | |
| 6" | 3″ | 680 | Rubber on Iron | 8-1/2″ | 95-RIR-0630-S | 1-3/4″ | 20 | ||
| 6" | 3″ | 1360 | Rubber on Iron-EHT | 8-1/2″ | 95-RIR-0630-S-EHT | 95-RIT-0630-S-EHT | 1-3/4″ | 20 | |
| 6" | 3″ | 1650 | Solid Urethane | 8-1/2″ | 95-MUB-0630-S | 1-3/4″ | 17 | ||
| 6" | 3″ | 2000 | Durastan | 8-1/2″ | 95-DUR-0630-S | 1-3/4″ | 17 | ||
| 6" | 3″ | 2000 | Urethane on Iron | 8-1/2″ | 95-UIR-0630-S | 95-UIT-0630-S | 1-3/4″ | 23 | |
| 6" | 3″ | 3000 | Cast Iron | 8-1/2″ | 95-CIR-0630-S | 95-CIT-0630-S | 1-3/4″ | 24 | |
| 6" | 3″ | 7000 | Forged Steel | 8-1/2″ | 85-FSR-0630-S | 85-FST-0630-S | 1-3/4″ | 28 | |
| 6" | 3″ | 7000 | V-Groove Forged | 8-1/2″ | 95-VFR-0630-S | 95-VFT-0630-S | 1-3/4″ | 32 | |
| 6" | 3″ | 10000 | Forged Steel HD | 8-1/2″ | 95-FST-0630-S-HD | 1-3/4″ | 28 | ||
| 6" | 3″ | 10000 | Nylatron HD | 8-1/2″ | 95-NYB-0630-S | 1-3/4″ | 18 | ||
| 8" | 2-1/2″ | 670 | Rubber on Iron | 10-1/2'' | 95-RIR-0825-S | 2-3/16″ | 23 | ||
| 8" | 2-1/2″ | 1340 | Rubber on Iron-EHT | 10-1/2'' | 95-RIR-0825-S-EHT | 95-RIT-0825-S-EHT | 2-3/16″ | 23 | |
| 8" | 2-1/2″ | 2400 | GT | 10-1/2'' | 95-GTB-0825-S | 2-3/16″ | 21 | ||
| 8" | 2-1/2″ | 3000 | V-Groove Iron | 10-1/2'' | 95-VIR-0825-S | 95-VIT-0825-S | 2-3/16″ | 27 | |
| 8" | 2-1/2″ | 4500 | Forged Steel | 10-1/2'' | 95-FSR-0825-S | 95-FST-0825-S | 2-3/16″ | 30 | |
| 8" | 3″ | 840 | Rubber on Iron | 10-1/2'' | 95-RIR-0830-S | 2-3/16″ | 23 | ||
| 8" | 3″ | 1500 | Rubber on Aluminum-EHT | 10-1/2'' | 95-RAB-0830-S-EHT | 95-RAT-0830-S-EHT | 2-3/16″ | 21 | |
| 8" | 3″ | 1680 | Rubber on Iron-EHT | 10-1/2'' | 95-RIR-0830-S-EHT | 95-RIT-0830-S-EHT | 2-3/16″ | 23 | |
| 8" | 3″ | 1600 | Omega | 10-1/2'' | 95-UOR-0830-S | 95-UOT-0830-S | 2-3/16″ | 26 | |
| 8" | 3″ | 1650 | Solid Urethane | 10-1/2'' | 95-MUB-0830-S | 2-3/16″ | 21 | ||
| 8" | 3″ | 2500 | Durastan | 10-1/2'' | 85-DUR-0830-S | 2-3/16″ | 21 | ||
| 8" | 3″ | 2500 | Urethane on Iron | 10-1/2'' | 95-UIR-0830-S | 95-UIT-0830-S | 2-3/16″ | 26 | |
| 8" | 3″ | 3000 | Cast Iron | 10-1/2'' | 95-CIR-0830-S | 95-CIT-0830-S | 2-3/16″ | 28 | |
| 8" | 3″ | 5000 | V-Groove Iron | 10-1/2'' | 95-VIR-0830-S | 95-VIT-0830-S | 2-3/16″ | 30 | |
| 8" | 3″ | 5500 | Forged Steel | 10-1/2'' | 95-FSR-0830-S | 95-FST-0830-S | 2-3/16″ | 32 | |
| 8" | 3″ | 6000 | V-Groove Forged Steel | 10-1/2'' | 95-VFR-0830-S | 95-VFT-0830-S | 2-3/16″ | 29 | |
| 8" | 3″ | 10000 | Nylatron HD | 10-1/2'' | 95-NYB-0830-S | 2-3/16″ | 22 | ||
| 8" | 4″ | 3500 | Urethane on Iron | 10-1/2'' | 95-UIR-0840-S | 95-UIT-0840-S | 2-3/16″ | 28 | |
| 8" | 4″ | 4000 | Cast Iron | 10-1/2'' | 95-CIR-0840-S | 95-CIT-0840-S | 2-3/16″ | 30 | |
| 8" | 4″ | 10000 | Forged Steel | 10-1/2'' | 95-FSR-0840-S | 2-3/16″ | 34 | ||
| 8" | 4″ | 10000 | V-Groove Forged Steel | 10-1/2'' | 95-VFR-0840-S | 2-3/16″ | 34 | ||
| 8" | 4″ | 14000 | Nylatron HD | 10-1/2'' | 95-NYB-0840-S | 2-3/16″ | 27 | ||
| 8" | 4″ | 15000 | V-Groove Forged Steel | 10-1/2'' | 95-VFT-0840-S | 2-3/16″ | 34 | ||
| 8" | 4″ | 20000 | Forged Steel HD | 10-1/2'' | 95-FST-0840-S | 2-3/16″ | 34 | ||
| 10" | 3″ | 1000 | Rubber on Iron | 12-1/2'' | 95-RIR-1030-S | 2-11/16″ | 28 | ||
| 10" | 3″ | 2000 | Rubber on Iron-EHT | 12-1/2'' | 95-RIR-1030-S-EHT | 95-RIT-1030-S-EHT | 2-11/16″ | 28 | |
| 10" | 3″ | 2000 | Omega | 12-1/2'' | 95-UOR-1030-S | 95-UOB-1030-S | 95-UOT-1030-S | 2-11/16″ | 32 |
| 10" | 3″ | 2000 | Rubber on Aluminum-EHT | 12-1/2'' | 95-RAB-1030-S-EHT | 95-RAT-1030-S-EHT | 2-11/16″ | 26 | |
| 10" | 3″ | 2000 | Solid Urethane | 12-1/2'' | 95-MUB-1030-S | 2-11/16″ | 25 | ||
| 10" | 3″ | 2900 | Durastan | 12-1/2'' | 95-DUR-1030-S | 2-11/16″ | 25 | ||
| 10" | 3″ | 3000 | Urethane on Iron | 12-1/2'' | 95-UIR-1030-S | 95-UIT-1030-S | 2-11/16″ | 32 | |
| 10" | 3″ | 3400 | GT | 12-1/2'' | 95-GTB-1030-S | 2-11/16″ | 25 | ||
| 10" | 3″ | 3400 | Ultra Thick Urethane | 12-1/2'' | 95-UTR-1030-S | 95-UTT-1030-S | 2-11/16″ | 32 | |
| 10" | 3″ | 4000 | Cast Iron | 12-1/2'' | 95-CIR-1030-S | 95-CIT-1030-S | 2-11/16″ | 38 | |
| 10" | 3″ | 5000 | V-Groove Iron | 12-1/2'' | 95-VIR-1030-S | 95-VIT-1030-S | 2-11/16″ | 44 | |
| 10" | 3″ | 6000 | Forged Steel | 12-1/2'' | 95-FSR-1030-S | 95-FST-1030-S | 2-11/16″ | 39 | |
| 10" | 3″ | 6000 | V-Groove Forged Steel | 12-1/2'' | 95-VFR-1030-S | 95-VFT-1030-S | 2-11/16″ | 39 | |
| 10" | 3″ | 10000 | Nylatron HD | 12-1/2'' | 95-NYB-1030-S | 2-11/16″ | 26 | ||
| 10" | 4″ | 1400 | Rubber on Iron | 12-1/2'' | 95-RIR-1040-S | 95-RIT-1040-S | 2-7/16″ | 34 | |
| 10" | 4″ | 4200 | Urethane on Iron | 12-1/2'' | 95-UIR-1040-S | 95-UIT-1040-S | 2-7/16″ | 63 | |
| 10" | 4″ | 4500 | Ultra Thick Urethane | 12-1/2'' | 95-UTR-1040-S | 95-UTT-1040-S | 2-7/16″ | 36 | |
| 10" | 4″ | 10000 | Forged Steel | 12-1/2'' | 95-FSR-1040-S | 2-7/16″ | 41 | ||
| 10" | 4″ | 10000 | V-Groove Forged | 12-1/2'' | 95-VFR-1040-S | 2-7/16″ | 41 | ||
| 10" | 4″ | 15000 | Forged Steel | 12-1/2'' | 95-VFT-1040-S | 2-7/16″ | 41 | ||
| 10" | 4″ | 16500 | Nylatron HD | 12-1/2'' | 95-NYB-1040-S | 2-7/16″ | 30 | ||
| 10" | 4″ | 20000 | Forged Steel HD | 12-1/2'' | 95-FST-1040-S | 2-7/16″ | 41 | ||
| 10" | 5″ | 5000 | Urethane on Iron | 12-1/2'' | 95-UIR-1050-S | 95-UIT-1050-S | 2-5/8″ | 32 | |
| 12" | 3″ | 1140 | Rubber on Iron | 15-1/2'' | 95-RIR-1230-S | 95-RIT-1230-S | 3-5/8″ | 38 | |
| 12" | 3″ | 2280 | Rubber on Iron-EHT | 15-1/2'' | 95-RIR-1230-S-EHT | 95-RIT-1230-S-EHT | 3-5/8″ | 38 | |
| 12" | 3″ | 2280 | Rubber on Aluminum-EHT | 15-1/2'' | 95-RAB-1230-S-EHT | 95-RAT-1230-S-EHT | 3-5/8″ | 35 | |
| 12" | 3″ | 3400 | Urethane on Iron | 15-1/2'' | 95-UIR-1230-S | 95-UIT-1230-S | 3-5/8″ | 42 | |
| 12" | 3″ | 3500 | Durastan | 15-1/2'' | 95-DUR-1230-S | 3-5/8″ | 29 | ||
| 12" | 3″ | 4100 | Ultra Thick Urethane | 15-1/2'' | 95-UTR-1230-S | 95-UTT-1230-S | 3-5/8″ | 35 | |
| 12" | 3″ | 5000 | Cast Iron | 15-1/2'' | 95-CIR-1230-S | 95-CIT-1230-S | 3-5/8″ | 41 | |
| 12" | 3″ | 6000 | V-Groove Iron | 15-1/2'' | 95-VIR-1230-S | 95-VIT-1230-S | 3-5/8″ | 43 | |
| 12" | 3″ | 10000 | Nylatron HD | 15-1/2'' | 95-NYB-1230-S | 3-5/8″ | 37 | ||
| 12" | 4″ | 1600 | Rubber on Iron | 15-1/2'' | 95-RIR-1240-S | 95-RIT-1240-S | 3-5/8″ | 40 | |
| 12" | 4″ | 4000 | Durastan | 15-1/2'' | 95-DUR-1240-S | 3-5/8″ | 30 | ||
| 12" | 4″ | 4800 | Urethane on Iron | 15-1/2'' | 95-UIR-1240-S | 95-UIT-1240-S | 3-5/8″ | 44 | |
| 12" | 4″ | 5300 | Ultra Thick Urethane | 15-1/2'' | 95-UTR-1240-S | 95-UTT-1240-S | 3-5/8″ | 40 | |
| 12" | 5″ | 2050 | Rubber on Iron | 15-1/2'' | 95-RIR-1250-S | 95-RIT-1250-S | 3-5/8″ | 44 | |
| 12" | 5″ | 6000 | Urethane on Iron | 15-1/2'' | 95-UIR-1250-S | 95-UIT-1250-S | 3-5/8″ | 48 | |
| 12" | 5″ | 6500 | Ultra Thick Urethane | 15-1/2'' | 95-UTR-1250-S | 95-UTT-1250-S | 3-5/8″ | 49 | |
| 14" | 3″ | 4800 | Ultra Thick Urethane | 18″ | 95-UTR-1430-S | 95-UTT-1430-S | 4-3/8″ | 39 | |
| 14" | 4″ | 6200 | Ultra Thick Urethane | 18″ | 95-UTR-1440-S | 95-UTT-1440-S | 4-3/8″ | 44 | |
| 14" | 5″ | 7600 | Ultra Thick Urethane | 18″ | 95-UTR-1450-S | 95-UTT-1450-S | 4-3/16″ | 52 | |
| 16" | 3″ | 1420 | Rubber on Iron | 19″ | 95-RIR-1630-S | 95-RIT-1630-S | 4-3/8″ | 45 | |
| 16" | 3″ | 4000 | Durastan | 19″ | 95-DUR-1630-S | 4-3/8″ | 35 | ||
| 16" | 3″ | 4600 | Urethane on Iron | 19″ | 95-UIR-1630-S | 95-UIT-1630-S | 4-3/8″ | 48 | |
| 16" | 3″ | 5400 | Ultra Thick Urethane | 19″ | 95-UTR-1630-S | 95-UTT-1630-S | 4-3/8″ | 47 | |
| 16" | 4″ | 6000 | Urethane on Iron | 19″ | 95-UIR-1640-S | 95-UIT-1640-S | 4-3/8″ | 54 | |
| 16" | 4″ | 7100 | Ultra Thick Urethane | 19″ | 95-UTR-1640-S | 95-UTT-1640-S | 4-3/8″ | 52 | |
| 16" | 4″ | 8000 | Durastan | 19″ | 95-DUR-1640-S | 4-3/8″ | 37 | ||
| 16" | 5″ | 8400 | Urethane on Iron | 19″ | 95-UIR-1650-S | 95-UTT-1650-S | 4-3/16″ | 60 | |
| 16" | 5″ | 8800 | Ultra Thick Urethane | 19″ | 95-UTR-1650-S | 95-UTT-1650-S | 4-3/16″ | 60 |
