2-95 Series Casters
Kingpinless Dual Wheel Casters
RWM’s 2-95 Series Kingpinless™ Dual Wheel Casters feature all of the benefits of our patented Kingpinless™ raceway and offer twice the capacity load. Dual wheel casters offer high weight capacities with minimal overall heights, better load distribution, floor protection and mobility than single wheel casters. This is a result of spreading the weight over a wider floor area while offering wheel differential action, resulting in less friction between the wheels and the floor, requiring less effort for the caster to swivel. Our 2-95 Series Casters are proudly made in the USA!
Features
| Raceway Design | 4-1/2″ diameter with 3/4″ diameter carbon steel balls. Precision machined and hardened to 53 Rockwell C minimum. Load and thrust are accommodated by our patented design. Sealed raceway is standard. |
| Capacity | Up to 20000 lbs. |
| Leg Thickness | 3/8” thick. |
| Axle | 3/4″ bolt and nut for 3″ wide, 1″ or 1-1/4″ bolt and nut for 4″ wide, 1-1/4″ bolt and nut for 5″ wide. |
| Finish | Laguna blue powder coat. |
| Wheels | 3″ wide wheels are available with either a 1″ roller bearing that rotates on 3/4″ x 1″ x 3-9/16″ hardened and ground spanner bushings or 3/4″ tapered bearings that rotate on a 3/4″ axle. 4″ and 5″ wheels are available with either a 1-1/4″ I.D. roller bearings which rotate on a hardened and ground spanner bushing or 1- 1/4″ tapered bearings which rotate on the axle. All wheels are equipped with lubrication fitting. |

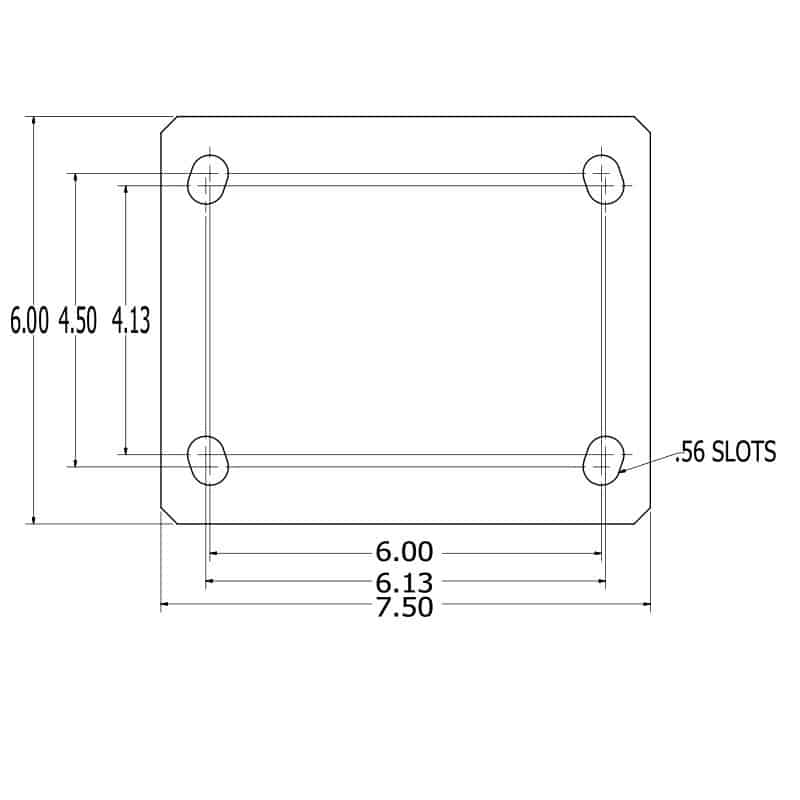

| Mounting Plate Size | 6-1/4″ x 7-1/2″ x 1/2″ swivel top plate, 6″ x 7-1/2″ x 1/2″ rigid top plate |
| Bolt Hole Spacing | 4-1/2″ x 6″, slotted to 4-1/8″ x 6-1/8 |
| Mounting Bolt Diameter | 1/2” |
| Mounting Plate Thickness | 1/2” |
Applications
| Tow Lines | Storage tanks & gantries |
| Abusive Conditions | Shock load applications |
| Automotive | Production line dollies |
| Aerospace | Heavy machinery |
| Metal fabricating | Mobile Homes |
| Military equipment | Extreme duty platform trucks |
| Tractor pulled trailers | Heavy-duty processing equipment |
| Air cargo & ground support equipment | Coliseum and gymnasium equipment |
| Boat & ship molding and building |
STANDARD
LMST
Kingpinless Raceway Diagram
BRAKES
| CWB | Cam Wheel Brake |
| PCWB | Poly Cam Wheel Brake |
SWIVEL LOCKS
| DSL | Demountable Swivel Lock* |
| HDSL | Heavy Duty Demountable Swivel Lock |
| LSL | L-Type Swivel Lock |
| SL | Swivel Lock |
| VSL | Vertical Swivel Lock |
LUBRICATIONS
| HT | High Temperature Lubrication |
| LT | Low Temperature Lubrication |
GUARDS, YOKES, SEALS, FINISHES
| FG | Foot Guard |
| HTP | High Temperature Paint |
| NY | Notched Yoke |
| SR | Sealed Raceways |
| SWP | Sweeper Brush |
| WS | Wheel Seals |
| ZP | Zinc Plated |
Specifications
2-95 Series Casters
| WHEEL DIAMETER | WHEEL WIDTH | CAPACITY | WHEEL TYPE | OVERALL HEIGHT | STRAIGHT ROLLER BEARING | BALL BEARING | TAPERED BEARING | SWIVEL LEAD | APPROX WEIGHT |
|---|---|---|---|---|---|---|---|---|---|
| 6" | 3'' | 4000 | Durastan | 8-3/4″ | 2-95-DUR-0630-S | 1-9/16″ | 24 | ||
| 6" | 3'' | 4000 | Solid Urethane | 8-3/4″ | 2-95-MUB-0630-S | 1-9/16″ | 24 | ||
| 6" | 3'' | 4000 | Urethane on Iron | 8-3/4″ | 2-95-UIR-0630-S | 2-95-UIT-0630-S | 1-9/16″ | 33 | |
| 6" | 3'' | 6000 | Cast Iron | 8-3/4″ | 2-95-CIR-0630-S | 2-95-CIT-0630-S | 1-9/16″ | 39 | |
| 6" | 3'' | 14300 | Forged Steel | 8-3/4″ | 2-95-FSR-0630-S | 2-95-FST-0630-S | 1-9/16″ | 55 | |
| 6" | 3'' | 20000 | Nylatron HD | 8-3/4″ | 2-95-NYB-0630-S | 1-9/16″ | 24 | ||
| 8" | 3'' | 1680 | Rubber on Iron | 10-3/4″ | 2-95-RIR-0830-S | 2-95-RIT-0830-S | 2-1/16″ | 50 | |
| 8" | 3'' | 3000 | Rubber on Aluminum-EHT | 10-3/4″ | 2-95-RAB-0830-S-EHT | 2-95-RAT-0830-S-EHT | 2-1/16″ | 40 | |
| 8" | 3'' | 3200 | Omega | 10-3/4″ | 2-95-UOR-0830-S | 2-95-UOT-0830-S | 2-1/16″ | 52 | |
| 8" | 3'' | 3360 | Rubber on Iron-EHT | 10-3/4″ | 2-95-UOR-0830-S | 2-95-UOT-0830-S | 2-1/16″ | 50 | |
| 8" | 3'' | 5000 | Durastan | 10-3/4″ | 2-95-DUR-0830-S | 2-1/16″ | 28 | ||
| 8" | 3'' | 5000 | Solid Urethane | 10-3/4″ | 2-95-MUB-0830-S | 2-1/16″ | 28 | ||
| 8" | 3'' | 5000 | Urethane on Iron | 10-3/4″ | 2-95-UIR-0830-S | 2-95-UIT-0830-S | 2-1/16″ | 52 | |
| 8" | 3'' | 6000 | Cast Iron | 10-3/4″ | 2-95-CIR-0830-S | 2-95-CIT-0830-S | 2-1/16″ | 49 | |
| 8" | 3'' | 11000 | Forged Steel | 10-3/4″ | 2-95-FSR-0830-S | 2-95-FST-0830-S | 2-1/16″ | 56 | |
| 8" | 3'' | 20000 | Nylatron HD | 10-3/4″ | 2-95-NYB-0830-S | 2-1/16″ | 29 | ||
| 8" | 4" | 7000 | Urethane on Iron | 10-3/4″ | 2-95-UIR-0840-S | 2-95-UIT-0840-S | 2-1/16″ | 64 | |
| 8" | 4" | 8000 | Cast Iron | 10-3/4″ | 2-95-CIR-0840-S | 2-95-CIT-0840-S | 2-1/16″ | 68 | |
| 8" | 4" | 20000 | Forged Steel | 10-3/4″ | 2-95-FSR-0840-S | 2-95-FST-0840-S | 2-1/16″ | 88 | |
| 8" | 4" | 20000 | Nylatron HD | 10-3/4″ | 2-95-NYB-0840-S | 2-1/16″ | 40 | ||
| 10" | 3'' | 2000 | Rubber on Iron | 12-3/4″ | 2-95-RIR-1030-S | 2-95-RIT-1030-S | 2-9/16″ | 54 | |
| 10" | 3'' | 4000 | Omega | 12-3/4″ | 2-95-UOR-1030-S | 2-95-UOT-1030-S | 2-9/16″ | 61 | |
| 10" | 3'' | 4000 | Rubber on Aluminum-EHT | 12-3/4″ | 2-95-RAB-1030-S-EHT | 2-95-RAT-1030-S-EHT | 2-9/16″ | 61 | |
| 10" | 3'' | 4000 | Rubber on Iron-EHT | 12-3/4″ | 2-95-RIR-1030-S-EHT | 2-95-RIT-1030-S-EHT | 2-9/16″ | 54 | |
| 10" | 3'' | 5800 | Durastan | 12-3/4″ | 2-95-DUR-1030-S | 2-9/16″ | 31 | ||
| 10" | 3'' | 6000 | Solid Urethane | 12-3/4″ | 2-95-MUB-1030-S | 2-9/16″ | 31 | ||
| 10" | 3'' | 6000 | Urethane on Iron | 12-3/4″ | 2-95-UIR-1030-S | 2-95-UIT-1030-S | 2-9/16″ | 61 | |
| 10" | 3'' | 6800 | GT | 12-3/4″ | 2-95-GTB-1030-S | 2-9/16″ | 45 | ||
| 10" | 3'' | 6800 | Ultra Thick Urethane | 12-3/4″ | 2-95-UTR-1030-S | 2-95-UTT-1030-S | 2-9/16″ | 64 | |
| 10" | 3'' | 8000 | Cast Iron | 12-3/4″ | 2-95-CIR-1030-S | 2-95-CIT-1030-S | 2-9/16″ | 74 | |
| 10" | 3'' | 12000 | Forged Steel | 12-3/4″ | 2-95-FSR-1030-S | 2-95-FST-1030-S | 2-9/16″ | 76 | |
| 10" | 3'' | 20000 | Nylatron HD | 12-3/4″ | 2-95-NYB-1030-S | 2-9/16″ | 46 | ||
| 10" | 4" | 3420 | Rubber on Iron | 12-3/4″ | 2-95-RIR-1040-S | 2-95-RIT-1040-S | 2-9/16″ | 72 | |
| 10" | 4" | 8400 | Urethane on Iron | 12-3/4″ | 2-95-UIR-1040-S | 2-95-UIT-1040-S | 2-9/16″ | 76 | |
| 10" | 4" | 9000 | Ultra Thick Urethane | 12-3/4″ | 2-95-UTR-1040-S | 2-95-UTT-1040-S | 2-9/16″ | 76 | |
| 10" | 4" | 10000 | Cast Iron | 12-3/4″ | 2-95-CIR-1040-S | 2-95-CIT-1040-S | 2-9/16″ | 116 | |
| 10" | 4" | 10000 | Forged Steel | 12-3/4″ | 2-95-FSR-1040-S | 2-9/16″ | 110 | ||
| 10" | 4" | 20000 | Nylatron HD | 12-3/4″ | 2-95-NYB-1040-S | 2-9/16″ | 76 | ||
| 10" | 4" | 20000 | Forged Steel | 12-3/4″ | 2-95-FST-1040-S | 2-9/16″ | 110 | ||
| 12" | 3'' | 2280 | Rubber on Iron | 15-1/2″ | 2-95-RIR-1230-S | 2-95-RIT-1230-S | 3-7/16″ | 83 | |
| 12" | 3'' | 4560 | Rubber on Aluminum-EHT | 15-1/2″ | 2-95-RAB-1230-S-EHT | 2-95-RAT-1230-S-EHT | 3-7/16″ | 88 | |
| 12" | 3'' | 4560 | Rubber on Iron-EHT | 15-1/2″ | 2-95-RIR-1230-S-EHT | 2-95-RIT-1230-S-EHT | 3-7/16″ | 83 | |
| 12" | 3'' | 6800 | Urethane on Iron | 15-1/2″ | 2-95-UIR-1230-S | 2-95-UIT-1230-S | 3-7/16″ | 88 | |
| 12" | 3'' | 7000 | Durastan | 15-1/2″ | 2-95-DUR-1230-S | 3-7/16″ | 34 | ||
| 12" | 3'' | 8200 | Ultra Thick Urethane | 15-1/2″ | 2-95-UTR-1230-S | 2-95-UTT-1230-S | 3-7/16″ | 101 | |
| 12" | 3'' | 10000 | Cast Iron | 15-1/2″ | 2-95-CIR-1230-S | 2-95-CIT-1230-S | 3-7/16″ | 83 | |
| 12" | 4" | 9600 | Urethane on Iron | 15-1/2″ | 2-95-UIR-1240-S | 2-95-UIT-1240-S | 3-7/16″ | ||
| 12" | 4" | 10600 | Ultra Thick Urethane | 15-1/2″ | 2-95-UTR-1240-S | 2-95-UTT-1240-S | 3-7/16″ | ||
| 12" | 5" | 12000 | Urethane on Iron | 15-1/2″ | 2-95-UIR-1250-S | 2-95-UIT-1250-S | 3-7/16″ | ||
| 12" | 5" | 13000 | Ultra Thick Urethane | 15-1/2″ | 2-95-UTR-1250-S | 2-95-UTT-1250-S | 3-7/16″ | ||
| 12" | 6" | 15000 | Urethane on Iron | 15-1/2″ | 2-95-UIR-1260-S | 2-95-UIT-1260-S | 3-7/16″ | ||
| 14" | 3'' | 9600 | Ultra Thick Urethane | 18″ | 2-95-UTR-1430-S | 2-95-UTT-1430-S | 3-7/8″ | 126 | |
| 14" | 4" | 12400 | Ultra Thick Urethane | 18″ | 2-95-UTR-1440-S | 2-95-UTT-1440-S | 3-7/8″ | 156 | |
| 14" | 5" | 15200 | Ultra Thick Urethane | 18″ | 2-95-UTR-1450-S | 2-95-UTT-1450-S | 3-7/8″ | 170 | |
| 14" | 6" | 18000 | Urethane on Iron | 18″ | 2-95-UIR-1460-S | 2-95-UIT-1460-S | 3-7/8″ | 178 | |
| 16" | 3'' | 8000 | Durastan | 19″ | 2-95-DUR-1630-S | 4-1/8″ | 89 | ||
| 16" | 3'' | 9200 | Urethane on Iron | 19″ | 2-95-UIR-1630-S | 2-95-UIT-1630-S | 4-1/8″ | 115 | |
| 16" | 3'' | 10800 | Ultra Thick Urethane | 19″ | 2-95-UTR-1630-S | 2-95-UTT-1630-S | 4-1/8″ | 94 | |
| 16" | 4" | 12000 | Urethane on Iron | 19″ | 2-95-UIR-1640-S | 2-95-UIT-1640-S | 4-1/8″ | 165 | |
| 16" | 4" | 14200 | Ultra Thick Urethane | 19″ | 2-95-UTR-1640-S | 2-95-UTT-1640-S | 4-1/8″ | 165 | |
| 16" | 5" | 16800 | Urethane on Iron | 19″ | 2-95-UIR-1650-S | 2-95-UIT-1650-S | 4-1/8″ | 185 | |
| 16" | 5" | 17600 | Ultra Thick Urethane | 19″ | 2-95-UTR-1650-S | 2-95-UTT-1650-S | 4-1/8″ | 205 |
To order a rigid caster, change the “S” to “R” in the model number. For example: “2-95-DUR-0830-R”. To order rig only, omit the bold letters. For example: “2-95-0830-S”. Dimensions shown are nominal. If precise dimensions are required, consult your RWM representative. For approximate weight of our rigid casters, deduct 5.4 pounds per item.
*When ordering the Demountable Swivel Lock (DSL), you must also order the Notched Yoke (NY).
**Add 1/4” to the caster’s overall height with the addition of a swivel lock.
