40 Series Casters
Medium Duty Casters
Our 40 Series Casters have been used in a wide variety of industrial caster applications for many years and are the backbone of the Material Handling Industry. The load ratings fit a wide variety of manufacturing and warehousing uses. This medium duty caster series is designed for use on scrap bins, parts boxes, dollies and racks.
Features
Swivel Section | Cold formed top plate, yoke and button are all heat treated to prevent brinelling, improve swivel action and increase service life. Load and thrust bearings are hardened and ground and rotate on hardened raceways. Top plate and legs are 1/4″ steel. Legs are formed for increased strength and continuously welded to yoke. All swivel sections are equipped with a lubrication fitting for field maintenance. RWM lubricates all swivel sections prior to shipment. Notched yokes are standard. |
Kingpin | 5/8″ diameter rivet hydraulically compressed to increase strength of swivel section as compared to staking |
Capacity | Up to 1200 lbs. |
Axle | 1/2″ diameter drilled axle with lubrication fitting provided on all casters to improve ease of lubrication |
Finish | Zinc plated to protect against corrosion |
Wheels | A wide variety of 3″ through 6″ diameters available with either roller bearing, ball bearing, celcon, oilite or plain bearings |
Mounting Plate Size | 4″ x 4-1/2″ x 1/4″ |
Bolt Hole Spacing | 2-5/8″ x 3-5/8″, slotted to 3″ x 3″ |
Mounting Bolt Diameter | 3/8 |
Applications
Bakeries | Racks |
Parts boxes | Maintenance Carts |
Scrap bins |
STANDARD
41ST/RT
42ST/RT
43ST/RT

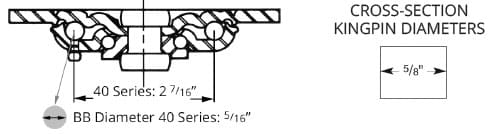

Kingpin Raceway Diagram
BRAKES
WB | Side Wheel Brake on 4” size and larger (Only available with roller bearings.) |
SWIVEL LOCKS
DSL | Demountable Swivel Lock |
DLSL | Demountable L-Type Swivel Lock |
SL | Swivel Lock |
LUBRICATIONS
HT | High Temperature Lubrication |
LT | Low Temperature Lubrication |
ADDITIONAL
IW | Inside Weld |
KB | Nut and Bolt Kingpin |
NY | Notched Yoke |
SR | Sealed Swivel Raceway |
TG | Thread Guards |
Specifications
40 Series Casters
WHEEL DIAMETER | WHEEL WIDTH | CAPACITY | WHEEL TYPE | OVERALL HEIGHT | ROLLER BEARING | BALL BEARING | PLAIN BEARING | SWIVEL LEAD | APPROX WEIGHT |
---|---|---|---|---|---|---|---|---|---|
3" | 1-3/4" | 400 | Durastan | 4-1/2" | 40-DUR-0317-S | 40-DUC-0317-S | 1-3/16" | 4 | |
3-1/4" | 1-3/4" | 400 | Cast Iron | 4-5/8" | 40-CIR-3215-S | 40-CIP-3215-S | 1-3/16" | 5.4 | |
3-1/4" | 1-3/4" | 600 | Durastan | 4-5/8" | 40-DUR-3215-S | 40-DUC-3215-S | 1-3/16" | 5.6 | |
3-5/8" | 1-1/2" | 420 | Urethane on Aluminum | 4-13/16" | 40-UAR-3515-S | 40-UAC-3515-S | 1-3/16" | 4.3 | |
4" | 1-1/2" | 200 | Soft Rubber | 5-5/8" | 40-SRO-0415-S | 1-3/8" | 4.6 | ||
4" | 1-1/2" | 250 | Rubber on Iron | 5-5/8" | 40-RIR-0415-S | 40-RIC-0415-S | 1-3/8" | 6 | |
4" | 1-1/2" | 300 | Urethane Solid | 5-5/8" | 40-USR-0415-S | 40-USC-0415-S | 1-3/8" | 4.1 | |
4" | 1-1/2" | 325 | Performance TPR | 5-5/8" | 40-RPR-0415-S | 40-RPB-0415-S | 40-RPC-0415-S | 1-3/8" | 4.8 |
4" | 1-1/2" | 375 | Polyolefin | 5-5/8" | 40-POR-0415-S | 40-POB-0415-S | 40-POP-0415-S | 1-3/8" | 4.1 |
4" | 1-1/2" | 400 | Hard Rubber | 5-5/8" | 40-HRO-0415-S | 1-3/8" | 4.7 | ||
4" | 1-1/2" | 500 | Cast Iron | 5-5/8" | 40-CIR-0415-S | 40-CIB-0415-S | 40-CIP-0415-S | 1-3/8" | 5.8 |
4" | 1-1/2" | 500 | Urethane Polypropylene | 5-5/8" | 40-UPR-0415-S | 40-UPB-0415-S | 40-UPC-0415-S | 1-3/8" | 4.8 |
4" | 1-1/2" | 600 | Durastan | 5-5/8" | 40-DUR-0415-S | 40-DUB-0415-S | 40-DUC-0415-S | 1-3/8" | 4.4 |
4" | 1-1/2" | 600 | Urethane on Aluminum | 5-5/8" | 40-UAR-0415-S | 40-UAC-0415-S | 1-3/8" | 4.4 | |
4" | 1-1/2" | 600 | Urethane on Iron | 5-5/8" | 40-UIR-0415-S | 40-UIB-0415-S | 40-UIC-0415-S | 1-3/8" | 6 |
4" | 1-1/2" | 700 | V-Groove Iron | 5-5/8" | 40-VIR-0415-S | 40-VIP-0415-S | 1-3/8" | 6.8 | |
4" | 1-1/2" | 900 | GT | 5-5/8" | 40-GTB-0415-S | 1-3/8" | 4.4 | ||
4" | 1-1/2" | 1200 | Forged Steel | 5-5/8" | 40-FSR-0415-S | 40-FSC-0415-S | 1-3/8" | 6.5 | |
4" | 1-1/2" | 1200 | Nylatron HD | 5-5/8" | 40-NYB-0415-S | 1-7/8" | 5.6 | ||
5" | 1-1/2" | 240 | Soft Rubber | 6-1/8″ | 40-SRO-0515-S | 1-3/8" | 5.8 | ||
5" | 1-1/2" | 300 | Rubber on Iron | 6-1/8″ | 40-RIR-0515-S | 40-RIC-0515-S | 1-3/8" | 5.4 | |
5" | 1-1/2" | 330 | Urethane Solid | 6-1/8″ | 40-USR-0515-S | 40-USB-0515-S | 40-USC-0515-S | 1-3/8" | 6 |
5" | 1-1/2" | 350 | Performance TPR | 6-1/8″ | 40-RPR-0515-S | 40-RPB-0515-S | 40-RPC-0515-S | 1-3/8" | 5.3 |
5" | 1-1/2" | 440 | Polyolefin | 6-1/8″ | 40-POR-0515-S | 40-POB-0515-S | 40-POP-0515-S | 1-3/8" | 4.4 |
5" | 1-1/2" | 600 | Cast Iron | 6-1/8″ | 40-CIR-0515-S | 40-CIB-0515-S | 40-CIC-0515-S | 1-3/8" | 6.7 |
5" | 1-1/2" | 650 | Durastan | 6-1/8″ | 40-DUR-0515-S | 40-DUB-0515-S | 40-DUC-0515-S | 1-3/8" | 4.9 |
5" | 1-1/2" | 700 | Urethane Polypropylene | 6-1/8″ | 40-UPR-0515-S | 40-UPB-0515-S | 40-UPC-0515-S | 1-3/8" | 5.3 |
5" | 1-1/2" | 720 | Urethane on Aluminum | 6-1/8″ | 40-UAR-0515-S | 40-UAC-0515-S | 1-3/8" | 5 | |
5" | 1-1/2" | 720 | Urethane on Iron | 6-1/8″ | 40-UIR-0515-S | 40-UIB-0515-S | 40-UIC-0515-S | 1-3/8" | 5 |
5" | 1-1/2" | 1000 | GT | 6-1/8″ | 40-GTB-0515-S | 1-3/8" | 4.9 | ||
5" | 1-1/2" | 1200 | Nylatron HD | 6-1/8″ | 40-NYB-0515-S | 1-7/8" | 6.1 | ||
6" | 1-1/2" | 370 | Rubber on Iron | 7-1/4" | 40-RIR-0615-S | 40-RIC-0615-S | 1-5/8" | 6.8 | |
6" | 1-1/2" | 475 | Performance TPR | 7-1/4" | 40-RPR-0615-S | 40-RPB-0615-S | 40-RPC-0615-S | 1-5/8" | 5.7 |
6" | 1-1/2" | 600 | Cast Iron | 7-1/4" | 40-CIR-0615-S | 40-CIP-0615-S | 1-5/8" | 7.8 | |
6" | 1-1/2" | 800 | Durastan | 7-1/4" | 40-DUR-0615-S | 40-DUB-0615-S | 40-DUC-0615-S | 1-5/8" | 5.4 |
6" | 1-1/2" | 800 | Urethane Polypropylene | 7-1/4" | 40-UPR-0615-S | 40-UPB-0615-S | 40-UPC-0615-S | 1-5/8" | 5.7 |
6" | 1-1/2" | 840 | Urethane on Iron | 7-1/4" | 40-UIR-0615-S | 40-UIB-0615-S | 40-UIC-0615-S | 1-5/8" | 7.9 |
6" | 1-1/2" | 1200 | GT | 7-1/4" | 40-GTB-0615-S | 1-5/8" | 5.4 | ||
6" | 1-1/2" | 1200 | Nylatron HD | 7-1/4" | 40-NYB-0615-S | 1-7/8" | 7 |
