45 Series Casters
Medium-Duty Casters
Our RWM 45 Series Caster is a cost-effective alternative to our 46 Series industrial caster. Optimized for medium-duty applications, they are ideal for use within bakeries, meat processing facilities, laboratories, auto shops, warehouses, and many light industrial applications. Easily affixed to scrap bins, floor trucks, shop carts, and heavy equipment, these casters are guaranteed to keep rolling over practically any surface.
Features
| Swivel Section | Heat-treated double ball raceways secured with a nut & bolt Kingpin |
| Kingpin | 5/8″ diameter nut and bolt |
| Capacity | Up to 1200 lbs. |
| Axle | 1/2″ diameter drilled axle with lubrication fitting |
| Finish | Zinc plated to protect against corrosion |
| Wheels | A wide variety of 4″ through 8″ diameters available with straight, roller, ball & celcon bearings |
| Mounting Plate Size | 4″ x 4-1/2″ x 1/4″ |
| Bolt Hole Spacing | 2-5/8″ x 3-5/8″ slotted to 3″ x 3″ |
| Mounting Bolt Diameter | 3/8″ |
Applications
| Bakery carts | Shipping/receiving carts |
| Meat processing | Tire racks |
| Assembly line & boat molding dollies | Housekeeping carts |
| Box trucks | Institutional equipment |
| Conveyor stands and fixture carts | Janitorial equipment |
| Maintenance & material handling carts | Laboratory equipment |
| Mobile storage racks & mobile tool chests | Electronic equipment |
| Shipping/receiving carts | Textile carts |
| ICWB | Installable Face Contact Brake |
| MICWB | Metal Installable Cam Wheel Brake |
| STB | Side Tread Brake |
| WB | Side Wheel Brake (Roller Bearing Only) |
| DSL | Demountable Swivel Lock |
| FOSL | Foot Operated Swivel Lock |
| TG | Thread Guard |
| WHEEL DIAMETER | WHEEL WIDTH | CAPACITY | WHEEL TYPE | OVERALL HEIGHT | ROLLER BEARING | BALL BEARING | PLAIN BEARING | SWIVEL LEAD | APPROX WEIGHT |
|---|---|---|---|---|---|---|---|---|---|
| 4" | 2" | 350 | Performance TPR | 5-5/8" | 45-RPR-0420-S | 45-RPB-0420-S | 45-RPC-0420-S | 1-3/8" | 5.3 |
| 4" | 2" | 350 | Rubber on Iron | 5-5/8" | 45-RIR-0420-S | 45-RIC-0420-S | 1-3/8" | 7.5 | |
| 4" | 2" | 400 | Signature | 5-5/8" | 45-SWR-0420-S | 45-SWB-0420-S | 45-SWC-0420-S | 1-3/8" | 5.5 |
| 4" | 2" | 500 | Polyolefin | 5-5/8" | 45-POR-0420-S | 45-POB-0420-S | 45-POC-0420-S | 1-3/8" | 4.8 |
| 4" | 2" | 600 | Urethane Polypropylene | 5-5/8" | 45-UPR-0420-S | 45-UPB-0420-S | 45-UPC-0420-S | 1-3/8" | 5.3 |
| 4" | 2" | 700 | Rubber on Aluminum | 5-5/8" | 45-RAB-0420-S-EHT | 1-3/8" | 7.4 | ||
| 4" | 2" | 700 | Solid Urethane | 5-5/8" | 45-MUB-0420-S | 1-3/8" | 5.5 | ||
| 4" | 2" | 700 | Urethane on Aluminum | 5-5/8" | 45-UAR-0420-S | 45-UAC-0420-S | 1-3/8" | 5.0 | |
| 4" | 2" | 700 | Urethane on Iron | 5-5/8" | 45-UIR-0420-S | 45-UIC-0420-S | 1-3/8" | 6.6 | |
| 4" | 2" | 800 | Cast Iron | 5-5/8" | 45-CIR-0420-S | 45-CIB-0420-S | 45-CIC-0420-S | 1-3/8" | 6.5 |
| 4" | 2" | 800 | Durastan | 5-5/8" | 45-DUR-0420-S | 45-DUB-0420-S | 45-DUC-0420-S | 1-3/8" | 5.2 |
| 4" | 2" | 800 | High Temperature Nylon | 5-5/8" | 45-HNR-0420-S | 1-3/8" | 5.2 | ||
| 4" | 2" | 800 | Pinnacle | 5-5/8" | 45-PNR-0420-S | 45-PNB-0420-S | 45-PNC-0420-S | 1-3/8" | |
| 4" | 2" | 800 | V-Groove Iron | 5-5/8" | 45-VIR-0420-S | 45-VIC-0420-S | 1-3/8" | 7.6 | |
| 4" | 2" | 1050 | GT | 5-5/8" | 45-GTB-0420-S | 1-3/8" | 5.2 | ||
| 4" | 2" | 1200 | Nylatron HD | 5-5/8" | 45-NYB-0420-S | 1-3/8" | 5.7 | ||
| 5″ | 2" | 375 | Performance TPR | 6-1/2" | 45-RPR-0520-S | 45-RPB-0520-S | 45-RPC-0520-S | 1-5/8" | 5.3 |
| 5″ | 2" | 400 | Rubber on Iron | 6-1/2" | 45-RIR-0520-S | 45-RIC-0520-S | 1-5/8" | 7.6 | |
| 5″ | 2" | 500 | Signature | 6-1/2" | 45-SWR-0520-S | 45-SWB-0520-S | 45-SWC-0520-S | 1-5/8" | 5.7 |
| 5″ | 2" | 650 | Polyolefin | 6-1/2" | 45-POR-0520-S | 45-POB-0520-S | 45-POC-0520-S | 1-5/8" | 4.6 |
| 5″ | 2" | 750 | Urethane Polypropylene | 6-1/2" | 45-UPR-0520-S | 45-UPB-0520-S | 45-UPC-0520-S | 1-5/8" | 5.3 |
| 5″ | 2" | 800 | Rubber on Aluminum | 6-1/2" | 45-RAB-0520-S-EHT | 1-5/8" | 7.5 | ||
| 5″ | 2" | 800 | V-Groove Iron | 6-1/2" | 45-VIR-0520-S | 45-VIC-0520-S | 1-5/8" | 9.9 | |
| 5″ | 2" | 1000 | Cast Iron | 6-1/2" | 45-CIR-0520-S | 45-CIB-0520-S | 45-CIC-0520-S | 1-5/8" | 7.8 |
| 5″ | 2" | 1000 | Durastan | 6-1/2" | 45-DUR-0520-S | 45-DUB-0520-S | 45-DUC-0520-S | 1-5/8" | 5.4 |
| 5″ | 2" | 1000 | High Temperature Nylon | 6-1/2" | 45-HNR-0520-S | 1-5/8" | 5.4 | ||
| 5″ | 2" | 1000 | Pinnacle | 6-1/2" | 45-PNR-0520-S | 45-PNB-0520-S | 45-PNC-0520-S | 1-5/8" | 5.6 |
| 5″ | 2" | 1000 | Solid Urethane | 6-1/2" | 45-MUB-0520-S | 1-5/8" | 5.7 | ||
| 5″ | 2" | 1050 | Urethane on Aluminum | 6-1/2" | 45-UAR-0520-S | 45-UAC-0520-S | 1-5/8" | 7.7 | |
| 5″ | 2" | 1050 | Urethane on Iron | 6-1/2" | 45-UIR-0520-S | 45-UIC-0520-S | 1-5/8" | 7.7 | |
| 5″ | 2" | 1200 | Forged Steel | 6-1/2" | 45-FSR-0520-S | 45-FSC-0520-S | 1-5/8" | 8.1 | |
| 5″ | 2" | 1200 | GT | 6-1/2" | 45-GTB-0520-S | 1-5/8" | 5.4 | ||
| 5″ | 2" | 1200 | Nylatron HD | 6-1/2" | 45-NYB-0520-S | 1-5/8" | 5.9 | ||
| 6" | 2" | 410 | Rubber on Iron | 7-1/2" | 45-RIR-0620-S | 45-RIC-0620-S | 1-13/16" | 7.8 | |
| 6" | 2" | 525 | Performance TPR | 7-1/2" | 45-RPR-0620-S | 45-RPB-0620-S | 45-RPC-0620-S | 1-13/16" | 5.7 |
| 6" | 2" | 600 | Signature | 7-1/2" | 45-SWR-0620-S | 45-SWB-0620-S | 45-SWC-0620-S | 1-13/16" | 6.4 |
| 6" | 2" | 700 | Polyolefin | 7-1/2" | 45-POR-0620-S | 45-POB-0620-S | 45-POC-0620-S | 1-13/16" | 5.0 |
| 6" | 2" | 820 | Rubber on Aluminum | 7-1/2" | 45-RAB-0620-S-EHT | 1-13/16" | 7.8 | ||
| 6" | 2" | 900 | Urethane Polypropylene | 7-1/2" | 45-UPR-0620-S | 45-UPB-0620-S | 45-UPC-0620-S | 1-13/16" | 5.7 |
| 6" | 2" | 1000 | Omega | 7-1/2" | 45-UOR-0620-S | 45-UOB-0620-S | 1-13/16" | 8.8 | |
| 6" | 2" | 1000 | V-Groove Iron | 7-1/2" | 45-VIR-0620-S | 45-VIC-0620-S | 1-13/16" | 10.9 | |
| 6" | 2" | 1200 | Cast Iron | 7-1/2" | 45-CIR-0620-S | 45-CIB-0620-S | 45-CIC-0620-S | 1-13/16" | 9.1 |
| 6" | 2" | 1200 | Durastan | 7-1/2" | 45-DUR-0620-S | 45-DUB-0620-S | 45-DUC-0620-S | 1-13/16" | 6.3 |
| 6" | 2" | 1200 | Forged Steel | 7-1/2" | 45-FSR-0620-S | 45-FSC-0620-S | 1-13/16" | 10.0 | |
| 6" | 2" | 1200 | GT | 7-1/2" | 45-GTB-0620-S | 1-13/16" | 6.3 | ||
| 6" | 2" | 1200 | High Temperature Nylon | 7-1/2" | 45-HNR-0620-S | 1-13/16" | 6.3 | ||
| 6" | 2" | 1200 | Pinnacle | 7-1/2" | 45-PNR-0620-S | 45-PNB-0620-S | 45-PNC-0620-S | 1-13/16" | 6.2 |
| 6" | 2" | 1200 | Solid Urethane | 7-1/2" | 45-MUB-0620-S | 1-13/16" | 6.4 | ||
| 6" | 2" | 1200 | Torus | 7-1/2" | 45-UAB-0621-S | 1-13/16" | 6.1 | ||
| 6" | 2" | 1200 | Urethane on Aluminum | 7-1/2" | 45-UAR-0620-S | 45-UAC-0620-S | 1-13/16" | 6.1 | |
| 6" | 2" | 1200 | Urethane on Iron | 7-1/2" | 45-UIR-0620-S | 45-UIC-0620-S | 1-13/16" | 8.8 | |
| 8" | 2" | 500 | Rubber on Iron | 9-1/2" | 45-RIR-0820-S | 45-RIC-0820-S | 2-3/16" | 10.1 | |
| 8" | 2" | 600 | Performance TPR | 9-1/2" | 45-RPR-0820-S | 45-RPB-0820-S | 45-RPC-0820-S | 2-3/16" | 7.1 |
| 8" | 2" | 700 | Signature | 9-1/2" | 45-SWR-0820-S | 45-SWB-0820-S | 45-SWC-0820-S | 2-3/16" | 7.1 |
| 8" | 2" | 800 | Polyolefin | 9-1/2" | 45-POR-0820-S | 45-POB-0820-S | 45-POC-0820-S | 2-3/16" | 5.8 |
| 8" | 2" | 1000 | Rubber on Aluminum | 9-1/2" | 45-RAB-0820-S-EHT | 2-3/16" | 10.1 | ||
| 8" | 2" | 1000 | Urethane Polypropylene | 9-1/2" | 45-UPR-0820-S | 45-UPB-0820-S | 45-UPC-0820-S | 2-3/16" | 7.7 |
| 8" | 2" | 1050 | V-Groove Iron | 9-1/2" | 45-VIR-0820-S | 45-VIC-0820-S | 2-3/16" | 15.3 | |
| 8" | 2" | 1200 | Cast Iron | 9-1/2" | 45-CIR-0820-S | 45-CIB-0820-S | 45-CIC-0820-S | 2-3/16" | 13.3 |
| 8" | 2" | 1200 | Durastan | 9-1/2" | 45-DUR-0820-S | 45-DUB-0820-S | 45-DUC-0820-S | 2-3/16" | 7.7 |
| 8" | 2" | 1200 | GT | 9-1/2" | 45-GTB-0820-S | 2-3/16" | 7.7 | ||
| 8" | 2" | 1200 | Omega | 9-1/2" | 45-UOR-0820-S | 45-UOB-0820-S | 2-3/16" | 12.1 | |
| 8" | 2" | 1200 | Pinnacle | 9-1/2" | 45-PNR-0820-S | 45-PNB-0820-S | 45-PNC-0820-S | 2-3/16" | 6.9 |
| 8" | 2" | 1200 | Solid Urethane | 9-1/2" | 45-MUB-0820-S | 2-3/16" | 7.1 | ||
| 8" | 2" | 1200 | Torus | 9-1/2" | 45-UAB-0821-S | 2-3/16" | 7.3 | ||
| 8" | 2" | 1200 | Urethane on Aluminum | 9-1/2" | 45-UAR-0820-S | 45-UAC-0820-S | 2-3/16" | 7.3 | |
| 8" | 2" | 1200 | Urethane on Iron | 9-1/2" | 45-UIR-0820-S | 45-UIC-0820-S | 2-3/16" | 12.1 |
Features of the 45 Series Casters
Our casters are zinc plated to provide significant protection against corrosion, making them ideal for use in applications where moisture contact is common and expected. Manufactured with either straight roller, ball, or celcon bearings, it is possible to create a caster with the precise maneuverability you desire. The strong and stable design means that the RWM 45 Series Caster will provide years of reliable operation with minimal maintenance.

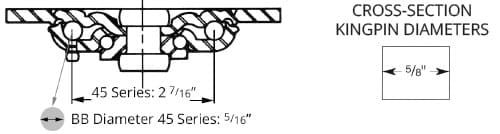

The swivel section is heat-treated and set within double ball raceways that are secured with a nut & bolt 5/8″ Kingpin. The design of our wheels gives them a capacity of between 350 lbs. and 1200 lbs. depending on whether you opt for the 4″, 6″, or 8″ caster. Each wheel has a 2″ width and an overall height of between 5-5/8″ and 9-1/2″.
Of course, we understand that each operation is different, and each surface requires the right caster for smooth rolling. That is why our wheels are available in either Performance TPR, rubber on iron, urethane on iron, rubber on aluminum, solid urethane, high temp nylon, Nylatron HD, GT, V-groove iron, Pinnacle, Durastan, Polyolevfin, Omega, Torus, or either cast or forged steel.
We make it a breeze to further customize the RWM 45 Series Caster for your specific applications. We offer installable face contact brakes, side tread brakes, metal installable cam wheel brakes, side wheel brakes, demountable swivel locks, foot-operated swivel locks, and thread guards. This makes it possible to optimize the caster for the rolling surface and your operational needs. Customization can significantly improve your casters’ performance, safety, and longevity, and we will help you incorporate the additional options that are most beneficial to your business.
We encourage you to contact RWM Casters at 800-634-7704 for more information about RWM Series 45 Casters. It is our pleasure to help you customize the ideal caster for your operational needs.
