46 Series Casters
Medium-Duty Casters
Ideal for use within a wide range of industries, our 46 Series Casters is a premium solution that provides stable support when affixed to shelf trucks, ground support equipment, A-frame trucks, dollies, carts, and more. Manufactured to the highest quality standards, our medium- to heavy-duty casters are designed for the most rigorous applications. Strong and sturdy, the casters make sure the material you need to move rolls along smoothly and without any trouble.
Contact RWM Casters at 800-634-7704 for more information about 46 Series Casters and the ways you can use them to make moving material faster, easier, and more efficient.
Features
| Swivel Section | Cold-formed top plate, yoke, and button are all heat treated to prevent brinelling, improve swivel action, and increase service life. Load and thrust bearings are hardened and ground and rotate on hardened raceways. Top plate and legs are quarter-inch steel, legs formed for increased strength and continuously welded to yoke on both inside and out. All swivel sections are equipped with a lubrication fitting for field maintenance. RWM lubricates all swivel sections before shipment. Notched yokes are standard. |
| Capacity | Up to 1,200 pounds |

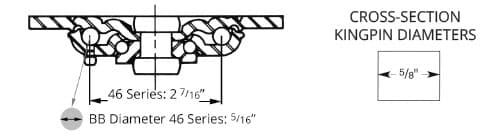

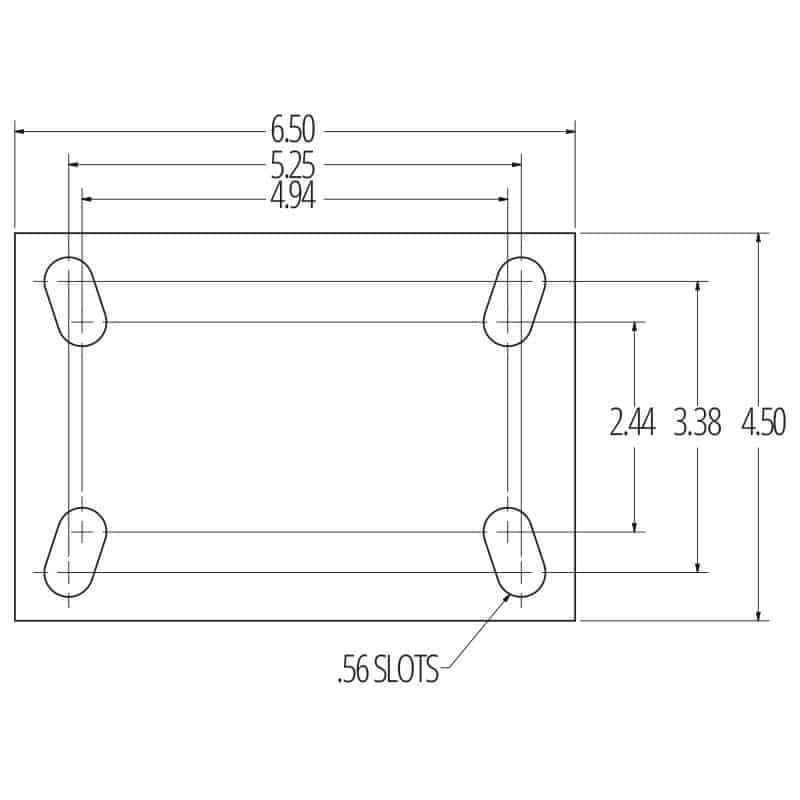

| Kingpin | 5/8″ diameter rivet hydraulically compressed to increase the strength of the swivel section as compared to staking |
| Axle | Half-inch diameter drilled axle with lubrication fitting provided on all casters to improve ease of lubrication |
| Finish | Zinc plated to protect from corrosion |
| Wheels | A wide variety of 3.25-inch through 8-inch diameters available with either roller, ball, celcon, or plain bearings |
| Mounting Plate Size | 4″ x 4-1/2″ x 1/4″ |
| Bolt Hole Spacing | 2-5/8″ x 3-5/8″ slotted to 3″ x 3″ |
| Mounting Bolt Diameter | 3/8″ |
Applications
| Platform trucks | Shelf trucks |
| Material handling carts | Ground support equipment |
| Vending machines | Bakery carts |
| Warehouse and factory applications | A-frame trucks |
| Heavy-duty food service and industrial equipment | Assembly line dollies |
| Tool boxes | Maintenance carts |
| Stock carts | Mobile storage racks |
| ICWB | Installable Face Contact Brake |
| FCNB | Face Contact Nylon Brake |
| FCNTLB | Face Contact Nylon Total Lock Brake |
| FCSTLB | Face Contact Street Total Lock Brake |
| MICWB | Metal Installable Cam Wheel Brake |
| WB | Field Installable Side Wheel Brake on 4” and larger (Roller Bearings Only) |
| WBT | Tread Wheel Brake |
| DSL | Demountable Swivel Lock |
| DLSL | Demountable L-Type Swivel Lock |
| SL | Swivel Lock |
| FOSL | Foot Operated Swivel Lock |
| HT | High-Temperature Lubrication |
| LT | Low-Temperature Lubrication |
| SR | Sealed Swivel Raceway |
| TG | Thread Guards |
| FG | Foot Guard |
| WS | Wheel Seals |
| WHEEL DIAMETER | WHEEL WIDTH | CAPACITY | WHEEL TYPE | OVERALL HEIGHT | ROLLER BEARING | BALL BEARING | PLAIN BEARING | SWIVEL LEAD | APPROX WEIGHT |
|---|---|---|---|---|---|---|---|---|---|
| 8" | 2" | 1200 | Urethane on Iron | 9-1/2" | 46-UIR-0820-S | 46-UIB-0820-S | 46-UIC-0820-S | 2-3/8" | 12.1 |
| 8" | 2" | 1200 | Urethane on Aluminum | 9-1/2" | 46-UAR-0820-S | 46-UAC-0820-S | 2-3/8" | 7.3 | |
| 8" | 2" | 1200 | Torus | 9-1/2" | 46-UAB-0821-S | 2-3/8" | 7.3 | ||
| 8" | 2" | 1200 | Solid Urethane | 9-1/2" | 46-MUB-0820-S | 2-3/8" | 7.1 | ||
| 8" | 2" | 1200 | Pinnacle | 9-1/2" | 46-PNR-0820-S | 46-PNC-0620-S | 2-3/8" | 6.9 | |
| 8" | 2" | 1200 | Omega | 9-1/2" | 46-UOR-0820-S | 46-UOB-0820-S | 2-3/8" | 12.1 | |
| 8" | 2" | 1200 | GT | 9-1/2" | 46-GTB-0820-S | 2-3/8" | 7.7 | ||
| 8" | 2" | 1200 | Durastan | 9-1/2" | 46-DUR-0820-S | 46-DUB-0820-S | 46-DUC-0820-S | 2-3/8" | 7.7 |
| 8" | 2" | 1200 | Cast Iron | 9-1/2" | 46-CIR-0820-S | 46-CIB-0820-S | 46-CIC-0820-S | 2-3/8" | 13.3 |
| 8" | 2" | 1050 | V-Groove Iron | 9-1/2" | 46-VIR-0820-S | 46-VIC-0820-S | 2-3/8" | 15.3 | |
| 8" | 2" | 1000 | Urethane Polypropylene | 9-1/2" | 46-UPR-0820-S | 46-UPB-0820-S | 46-UPC-0820-S | 2-3/8" | 7.7 |
| 8" | 2" | 1000 | Rubber on Aluminum | 9-1/2" | 46-RAB-0820-S-EHT | 2-3/8" | 10.1 | ||
| 8" | 2" | 800 | Polyolefin | 9-1/2" | 46-POR-0820-S | 46-POB-0820-S | 46-POC-0820-S | 2-3/8" | 5.8 |
| 8" | 2" | 700 | Signature | 9-1/2" | 46-SWR-0820-S | 46-SWB-0820-S | 46-SWC-0820-S | 2-3/8" | 7.1 |
| 8" | 2" | 600 | Performance TPR | 9-1/2" | 46-RPR-0820-S | 46-RPB-0820-S | 46-RPC-0820-S | 2-3/8" | 7.1 |
| 8" | 2" | 500 | Rubber on Iron | 9-1/2" | 46-RIR-0820-S | 46-RIC-0820-S | 2-3/8" | 10.1 | |
| 6" | 2" | 1200 | Urethane on Iron | 7-1/2" | 46-UIR-0620-S | 46-UIB-0620-S | 46-UIC-0620-S | 2″ | 8.8 |
| 6" | 2" | 1200 | Urethane on Aluminum | 7-1/2" | 46-UAR-0620-S | 46-UAC-0620-S | 2″ | 6.1 | |
| 6" | 2" | 1200 | Torus | 7-1/2" | 46-UAB-0621-S | 2″ | 6.1 | ||
| 6" | 2" | 1200 | Solid Urethane | 7-1/2" | 46-MUB-0620-S | 2″ | 6.4 | ||
| 6" | 2" | 1200 | Pinnacle | 7-1/2" | 46-PNR-0620-S | 46-PNB-0620-S | 46-PNC-0620-S | 2″ | 6.2 |
| 6" | 2" | 1200 | High Temperature Nylon | 7-1/2" | 46-HNR-0620-S | 2″ | 6.3 | ||
| 6" | 2" | 1200 | GT | 7-1/2" | 46-GTB-0620-S | 2″ | 6.3 | ||
| 6" | 2" | 1200 | Forged Steel | 7-1/2" | 46-FSR-0620-S | 46-FSC-0620-S | 2″ | 10 | |
| 6" | 2" | 1200 | Durastan | 7-1/2" | 46-DUR-0620-S | 46-DUB-0620-S | 46-DUC-0620-S | 2″ | 6.3 |
| 6" | 2" | 1200 | Cast Iron | 7-1/2" | 46-CIR-0620-S | 46-CIB-0620-S | 46-CIC-0620-S | 2″ | 9.1 |
| 6" | 2" | 1000 | V-Groove Iron | 7-1/2" | 46-VIR-0620-S | 46-VIC-0620-S | 2″ | 10.9 | |
| 6" | 2" | 1000 | Omega | 7-1/2" | 46-UOR-0620-S | 46-UOB-0620-S | 2″ | 8.8 | |
| 6" | 2" | 900 | Urethane Polypropylene | 7-1/2" | 46-UPR-0620-S | 46-UPB-0620-S | 46-UPC-0620-S | 2″ | 5.7 |
| 6" | 2" | 820 | Rubber on Aluminum | 7-1/2" | 46-RAB-0620-S-EHT | 2″ | 7.8 | ||
| 6" | 2" | 700 | Polyolefin | 7-1/2" | 46-POR-0620-S | 46-POB-0620-S | 46-POC-0620-S | 2″ | 5.0 |
| 6" | 2" | 600 | Signature | 7-1/2" | 46-SWR-0620-S | 46-SWB-0620-S | 46-SWC-0620-S | 2″ | 6.4 |
| 6" | 2" | 525 | Performance TPR | 7-1/2" | 46-RPR-0620-S | 46-RPB-0620-S | 46-RPC-0620-S | 2″ | 5.7 |
| 6" | 2" | 410 | Rubber on Iron | 7-1/2" | 46-RIR-0620-S | 46-RIC-0620-S | 2″ | 7.8 | |
| 5" | 2" | 1200 | High Temperature Nylon | 6-1/2" | 46-NYB-0520-S | 1-11/16" | 5.9 | ||
| 5" | 2" | 1200 | GT | 6-1/2" | 46-GTB-0520-S | 1-11/16" | 5.4 | ||
| 5" | 2" | 1200 | Forged Steel | 6-1/2" | 46-FSR-0520-S | 46-FSC-0520-S | 1-11/16" | 8.1 | |
| 5" | 2" | 1050 | Urethane on Iron | 6-1/2" | 46-UIR-0520-S | 46-UIC-0520-S | 1-11/16" | 7.7 | |
| 5" | 2" | 1050 | Urethane on Aluminum | 6-1/2" | 46-UAR-0520-S | 46-UAC-0520-S | 1-11/16" | 5.5 | |
| 5" | 2" | 1000 | Solid Urethane | 6-1/2" | 46-MUB-0520-S | 1-11/16" | 5.7 | ||
| 5" | 2" | 1000 | Pinnacle | 6-1/2" | 46-PNR-0520-S | 46-PNB-0520-S | 46-PNC-0520-S | 1-11/16" | 5.6 |
| 5" | 2" | 1000 | High Temperature Nylon | 6-1/2" | 46-HNR-0520-S | 1-11/16" | 5.4 | ||
| 5" | 2" | 1000 | Durastan | 6-1/2" | 46-DUR-0520-S | 46-DUB-0520-S | 46-DUC-0520-S | 1-11/16" | 5.4 |
| 5" | 2" | 1000 | Cast Iron | 6-1/2" | 46-CIR-0520-S | 46-CIB-0520-S | 46-CIC-0520-S | 1-11/16" | 7.8 |
| 5" | 2" | 800 | V-Groove Iron | 6-1/2" | 46-VIR-0520-S | 46-VIC-0520-S | 1-11/16" | 9.9 | |
| 5" | 2" | 800 | Rubber on Aluminum | 6-1/2" | 46-RAB-0520-S-EHT | 1-11/16" | 7.5 | ||
| 5" | 2" | 750 | Urethane Polypropylene | 6-1/2" | 46-UPR-0520-S | 46-UPB-0520-S | 46-UPC-0520-S | 1-11/16" | 5.3 |
| 5" | 2" | 650 | Polyolefin | 6-1/2" | 46-POR-0520-S | 46-POB-0520-S | 46-POC-0520-S | 1-11/16" | 4.6 |
| 5" | 2" | 500 | Signature | 6-1/2" | 46-SWR-0520-S | 46-SWB-0520-S | 46-SWC-0520-S | 1-11/16" | 5.7 |
| 5" | 2" | 400 | Rubber on Iron | 6-1/2" | 46-RIR-0520-S | 46-RIC-0520-S | 1-11/16" | 7.6 | |
| 5" | 2" | 375 | Performance TPR | 6-1/2" | 46-RPR-0520-S | 46-RPB-0520-S | 46-RPC-0520-S | 1-11/16" | 5.3 |
| 4" | 2" | 1200 | High Temperature Nylon | 5-5/8" | 46-NYB-0420-S | 1-3/8" | 5.7 | ||
| 4" | 2" | 1050 | GT | 5-5/8" | 46-GTB-0420-S | 1-3/8" | 5.2 | ||
| 4" | 2" | 800 | V-Groove Iron | 5-5/8" | 46-VIR-0420-S | 46-VIC-0420-S | 1-3/8" | 7.6 | |
| 4" | 2" | 800 | Pinnacle | 5-5/8" | 46-PNR-0420-S | 46-PNB-0420-S | 46-PNC-0420-S | 1-3/8" | 5.2 |
| 4" | 2" | 800 | High Temperature Nylon | 5-5/8" | 46-HNR-0420-S | 1-3/8" | 5.2 | ||
| 4" | 2" | 800 | Durastan | 5-5/8" | 46-DUR-0420-S | 46-DUB-0420-S | 46-DUC-0420-S | 1-3/8" | 5.2 |
| 4" | 2" | 800 | Cast Iron | 5-5/8" | 46-CIR-0420-S | 46-CIB-0420-S | 46-CIC-0420-S | 1-3/8" | 6.5 |
| 4" | 2" | 700 | Urethane on Iron | 5-5/8" | 46-UIR-0420-S | 46-UIC-0420-S | 1-3/8" | 6.6 | |
| 4" | 2" | 700 | Urethane on Aluminum | 5-5/8" | 46-UAR-0420-S | 46-UAC-0420-S | 1-3/8" | 5.0 | |
| 4" | 2" | 700 | Solid Urethane | 5-5/8" | 46-MUB-0420-S | 1-3/8" | 5.5 | ||
| 4" | 2" | 700 | Rubber on Aluminum | 5-5/8" | 46-RAB-0420-S-EHT | 1-3/8" | 7.4 | ||
| 4" | 2" | 600 | Urethane Polypropylene | 5-5/8" | 46-UPR-0420-S | 46-UPB-0420-S | 46-UPC-0420-S | 1-3/8" | 5.3 |
| 4" | 2" | 500 | Polyolefin | 5-5/8" | 46-POR-0420-S | 46-POB-0420-S | 46-POC-0420-S | 1-3/8" | 4.8 |
| 4" | 2" | 400 | Signature | 5-5/8" | 46-SWR-0420-S | 46-SWB-0420-S | 46-SWC-0420-S | 1-3/8" | 5.5 |
| 4" | 2" | 350 | Rubber on Iron | 5-5/8" | 46-RIR-0420-S | 46-RIC-0420-S | 1-3/8" | 7.5 | |
| 4" | 2" | 350 | Performance TPR | 5-5/8" | 46-RPR-0420-S | 46-RPB-0420-S | 46-RPC-0420-S | 1-3/8" | 5.3 |
| 4" | 1-1/2" | 1200 | Forged Steel | 5-5/8" | 46-FSR-0415-S | 46-FSC-0415-S | 1-3/8" | 7 | |
| 3-1/4" | 1-1/2" | 400 | Durastan | 5-1/4" | 46-DUR-3220-S | 46-DUC-3220-S | 1-7/16" | 6.7 |
Features of the 46 Series Casters
Each Kingpin features a five-eighths-inch rivet and half-inch axle designed to significantly increase the strength of the swivel section and rolling action. Coupled with the zinc-plated finish, the result is a caster that delivers superior performance and unparalleled reliability in warehouses, grocery stores, food processing facilities, light industrial operations, and more.
46 Series Casters are available with wheel diameters ranging from 3.25 inches to 8 inches, with a wheel width of between 1.5 inches to 2 inches, making it possible to select wheels with a capacity of between 400 pounds and 1,200 pounds. Once installed, the overall height of the wheels is between 5.25 inches to 9.5 inches. The casters are available with roller, ball, or plain bearings, making it easy to select the option that is ideally suited for your workplace.
Customization is the key to convenience in any application. At RWM Casters, we offer numerous options that make it easy to customize your casters for your specific applications and operational environment. To that end, we offer tread wheel brakes, demountable swivel locks, high/low-temperature lubrication, foot guards, wheel seals, and more.
