53 Series Casters
Heavy-Duty Casters
RWM’s 53 Series casters feature thicker legs and a 3/4” diameter axle that improves on our very popular 52 Series. This caster is designed to stand up to most heavy-duty industrial caster applications and is proudly Made in the U.S.A. If you don’t see what you want, let our engineering team custom design a caster for your individual application.
Features of the 53 Series Caster
The 53 Series caster is available in 5”, 8”, and 10” diameters with a 2-1/2” wheel width. This gives the finished caster an overall height of 7-1/8” to 12-1/16”. Depending on the wheel diameter and wheel composition, each wheel has a capacity of between 540 lbs. and 1800 lbs. This gives you considerable flexibility to design a caster ideally suited for your needs and operations.
The 53 Series Caster can be paired with the following wheel types:
- Cast Iron
- Rubber on Iron
- V-Groove Iron
- Durastan
- Urethane on Iron
- Forged Steel
- GT
As with any caster, customization is key, and at RWM, we make it easy to add additional features to improve the wheel’s performance. For example, the 53 Series caster can be customized to include cam wheel brakes, swivel locks, high or low-temperature lubrication, sealed swivel raceways, and wheel seals.
Features

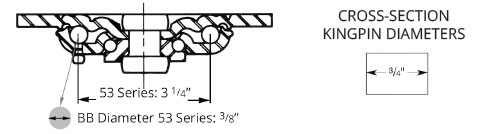

| Swivel Section | Cold-formed top plate, yoke, and button are all heat treated to prevent brinelling, improve swivel action and increase service life. Both load and thrust bearings are hardened, and ground and raceway bearings rotate on hardened raceways. The top plate and legs are 1/4” steel. Legs are formed for increased strength and continuously welded to yoke. All swivel sections are equipped with a lubrication fitting for field maintenance. RWM lubricates all swivel sections before shipment. |
| Kingpin | 3/4” bolt and lock nut for increased swivel section strength |
| Capacity | Up to1800 lbs. |
| Axle | 3/4” diameter axle |
| Finish | Zinc plated to protect against corrosion |
| Wheels | Wheels are available with 1” I.D. diameter straight roller bearings, which rotate on a 1” O.D. hardened and ground spanner bushing, or 3/4” I.D. tapered bearing on a 3/4” axle. The tapered bearing configuration is highly recommended for high-speed and side thrust applications. |
| Mounting Plate Size | 4 -1/2” x 6-1/2” x 1/4” |
| Bolt Hole Spacing | 2-7/16” x 4-15/16”, slotted to 3-3/8” x 5-1/4” |
| Mounting Bolt Diameter | 1/2" |
Applications
| Movable racks | Corrugated box trucks |
| Conveyor and drag line applications | Caster mounted production jigs and fixtures |
| Utility trucks | Maintenance carts |
| CWB | Cam Wheel Brake |
| SL | Swivel Lock |
| HT | High Temperature Lubrication |
| LT | Low Temperature Lubrication |
| SR | Sealed Swivel Raceway |
| WS | Wheel Seals |
| WHEEL DIAMETER | WHEEL WIDTH | CAPACITY | WHEEL TYPE | OVERALL HEIGHT | STRAIGHT ROLLER BEARING | BALL BEARING | TAPERED BEARING | SWIVEL LEAD | APPROX WEIGHT |
|---|---|---|---|---|---|---|---|---|---|
| 10" | 2-1/2" | 1800 | Urethane on Iron | 12-1/16" | 53-UIR-1025-S | 53-UIT-1025-S | 3" | 24.2 | |
| 10" | 2-1/2" | 1800 | Durastan | 12-1/16" | 53-DUR-1025-S | 3" | 15.1 | ||
| 10" | 2-1/2" | 1800 | Cast Iron | 12-1/16" | 53-CIR-1025-S | 53-CIT-1025-S | 3" | 23.7 | |
| 10" | 2-1/2" | 790 | Rubber on Iron | 12-1/16" | 53-RIR-1025-S | 53-RIT-1025-S | 3" | 19 | |
| 8" | 2-1/2" | 1800 | V-Groove Iron | 10-1/4" | 53-VIR-0825-S | 53-VIT-0825-S | 2-5/8" | 20 | |
| 8" | 2-1/2" | 1800 | Urethane on Iron | 10-1/4" | 53-UIR-0825-S | 53-UIT-0825-S | 2-5/8" | 16.8 | |
| 8" | 2-1/2" | 1800 | GT | 10-1/4" | 53-GTB-0825-S | 2-5/8" | 13.1 | ||
| 8" | 2-1/2" | 1800 | Forged Steel | 10-1/4" | 53-FSR-0825-S | 53-FST-0825-S | 2-5/8" | 29.6 | |
| 8" | 2-1/2" | 1800 | Durastan | 10-1/4" | 53-DUR-0825-S | 2-5/8" | 13.1 | ||
| 8" | 2-1/2" | 1800 | Cast Iron | 10-1/4" | 53-CIR-0825-S | 53-CIT-0825-S | 2-5/8" | 19.7 | |
| 8" | 2-1/2" | 670 | Rubber on Iron | 10-1/4" | 53-RIR-0825-S | 2-5/8" | 17.8 | ||
| 6" | 2-1/2" | 1800 | GT | 7-5/8" | 53-GTB-0625-S | 1-7/8" | 10.8 | ||
| 6" | 2-1/2" | 1800 | Forged Steel | 7-5/8" | 53-FSR-0625-S | 53-FST-0625-S | 1-7/8" | 19.5 | |
| 6" | 2-1/2" | 1620 | Urethane on Iron | 7-5/8" | 53-UIR-0625-S | 53-UIT-0625-S | 1-7/8" | 17 | |
| 6" | 2-1/2" | 1800 | Cast Iron | 7-5/8" | 53-CIR-0625-S | 1-7/8" | 15.1 | ||
| 6" | 2-1/2" | 1600 | Durastan | 7-5/8" | 53-DUR-0625-S | 1-7/8" | 10.8 | ||
| 6" | 2-1/2" | 1500 | V-Groove Iron | 7-5/8" | 53-VIR-0625-S | 53-VIT-0625-S | 1-7/8" | 17.2 | |
| 6" | 2-1/2" | 540 | Rubber on Iron | 7-5/8" | 53-RIR-0625-S | 1-7/8" | 13.8 | ||
| 5" | 2-1/2" | 1800 | Cast Iron | 7-1/8" | 53-CIR-0525-S | 53-CIT-0525-S | 1-55/64" | 13.7 |
Applications for the 53 Series Caster
The 53 Series caster is ideal for use on movable racks, utility trucks, corrugated box trucks, and maintenance carts. It can also be affixed to caster-mounted production jigs and used in conveyor and dragline operations. Indeed, this highly versatile caster is designed to handle the toughest tasks with ease and precision.
The wheels are ideal for use within warehouses, manufacturing plants, production lines, distribution centers, and other industrial settings where the efficient handling of materials and equipment is essential for safety and speed.
Benefits of the 53 Series Caster
When you need heavy-duty performance, the 53 Series Caster is a heavy-duty option that will deliver reliable, repeatable results. As with many of our casters, our cold-formed top plate coupled with the cold-formed yoke and button are engineered to prevent brinelling. Further, each wheel features a precision tapered bearing configuration. This allows the wheel to operate at high speed and withstand the forces applied during side thrust applications without any difficulty.
Additionally, the 53 Series caster is zinc plated, which means that the caster will provide reliable protection against corrosion. Coupled with the precision engineering we build into every wheel, this means less maintenance and a longer life span than competing options.
We encourage you to contact RWM Casters at 800-634-7704 to learn more about the benefits and uses of the 53 Series caster. It is our pleasure to help you select the ideal configuration for your needs.
