RWM Polyurethane wheel

75 Series Casters

Heavy-Duty Kingpinless Casters

RWM Casters invented the Kingpinless design, and you can count on our 75 Series caster when the going gets tough. We’ve designed this caster for challenging applications. The heavy-duty 75 Series comes with a wheel width up to 3 inches, well suited for high-capacity functions. These casters provide the ideal mounting system for a variety of wheels from our vast catalog.

Case hardening gives this caster the advantage over the induction- or through-hardening methods used by lesser manufacturers. Case hardening makes our 75 Series caster incredibly resilient and reliable for the long haul, offering superior performance with low risk of cracking. Our casters keep your cartsplatform trucks, and tow lines moving under heavy loads at high speeds.

Features

Raceway Design Patented Kingpinless™ single ball bearing precision machined raceway hardened to 53 Rockwell C minimum. Swivel section features 3” diameter raceway with ½” ball bearings. The notched raceway is standard.
Capacity Up to 6000 lbs.
Leg Thickness 5/16” formed steel
Axle 3/4” bolt with lock or slotted nut as required
Finish Laguna blue powder coat
Wheels Wheels are available with either a 1” roller bearing which rotates on a hardened and ground spanner brushing or 3/4” tapered bearings that rotate on the axle. All wheels are equipped with lubricated fitting.
Mounting Plate Size 4-1/2” x 6-1/2” x 5/16”
Bolt Hole Spacing 2-7/16” x 4-15/16” slotted to 3-3/8” x 5-1/4”
Mounting Bolt Diameter 1/2”

Applications

Aircraft maintenance and support applications Heavy-duty industrial applications
Towing applications Manufacturing applications
Automotive assembly lines

* Add 1/16" OAH when using this top plate
** Add 3/16" OAH when using this top plate

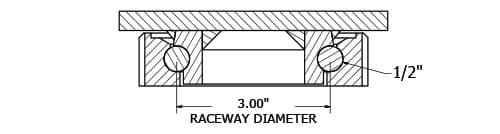

Kingpinless Raceway Diagram
mounting-plate-90st-90rt-jpg

Options

BRAKES
CWB Cam Wheel Brake
FICWB Field Installable Cam Wheel Brake
MICWB Metal Installable Cam Wheel Brake
PCWB Poly Cam Wheel Brake
SWIVEL LOCKS
DSL Demountable Swivel Lock
FOSL Foot Operated Swivel Lock
SL Swivel Lock
LSL L-Type Swivel Lock
VSL Vertical Swivel Lock
LUBRICATIONS
HT High Temperature Lubrication
LT Low Temperature Lubrication
GUARDS, SEALS AND FINISHES
FIFG Field Installable Foot Guard
FG Foot Guard
TG Thread Guards
HTP High Temperature Paint
SR Sealed Raceway
WS Wheel Seals
Specifications
75 Series Casters
WHEEL DIAMETER WHEEL WIDTH CAPACITY WHEEL TYPE OVERALL HEIGHT ROLLER BEARING STRAIGHT ROLLER BEARING BALL BEARING TAPERED BEARING SWIVEL LEAD APPROX WEIGHT
5''2-1/2″2000Cast Iron6-1/2"75-CIR-0525-S75-CIT-0525-S1-1/8″18
6"2-1/2″540Rubber on Iron7-1/2"75-RIR-0625-S1-5/16″16.5
6"2-1/2″1080Rubber on Iron-EHT7-1/2"75-RIR-0625-S-EHT75-RIT-0625-S-EHT1-5/16″16.5
6"2-1/2″1600Durastan7-1/2"75-DUR-0625-S1-5/16″11.5
6"2-1/2″1620Urethane on Iron7-1/2"75-UIR-0625-S75-UIT-0625-S1-5/16″16.5
6"2-1/2″1800Cast Iron7-1/2"75-CIR-0625-S75-CIT-0625-S1-5/16″17
6"2-1/2″2300GT7-1/2"75-GTB-0625-S1-5/16″11.5
6"2-1/2″2500V-Groove Iron7-1/2"75-VIR-0625-S75-VIT-0625-S1-5/16″16.5
6"2-1/2″5000Forged Steel7-1/2"75-FSR-0625-S75-FST-0625-S1-5/16″20.5
6"3″680Rubber on Iron7-1/2"75-RIR-0630-S1-5/16″17.5
6"3″1360Rubber on Iron-EHT7-1/2"75-RIR-0630-S-EHT75-RIT-0630-S-EHT1-5/16″17.5
6"3″2000Durastan7-1/2"75-DUR-0630-S1-5/16″12.5
6"3″2000Urethane on Iron7-1/2"75-UIR-0630-S75-UIT-0630-S1-5/16″17.5
6"3″3000Cast Iron7-1/2"75-CIR-0630-S75-CIT-0630-S1-5/16″18.5
6"3''6000Forged Steel7-1/2"75-FSR-0630-S75-FST-0630-S1-5/16″31
6"3″6000Nylatron HD7-1/2"75-NYB-0630-S1-5/16″12.5
6"3″6000V-Groove Forged7-1/2"75-VFR-0630-S75-VFT-0630-S1-5/16″30
8"2-1/2″670Rubber on Iron10-1/8"75-RIR-0825-S2″18.5
8"2-1/2″1340Rubber on Iron-EHT10-1/8"75-RIR-0825-S-EHT75-RIT-0825-S-EHT2″18.5
8"2-1/2″1800Urethane on Iron10-1/8"75-UIR-0825-S75-UIT-0825-S2″18.5
8"2-1/2″2000Cast Iron10-1/8"75-CIR-0825-S75-CIT-0825-S2″23
8"2-1/2″2000Durastan10-1/8"75-DUR-0825-S2″15
8"2-1/2″2400GT10-1/8"75-GTB-0825-S2″15
8"2-1/2″3000V-Groove Iron10-1/8"75-VIR-0825-S75-VIT-0825-S2″27
8"2-1/2″4500Forged Steel10-1/8"75-FSR-0825-S75-FST-0825-S2″25.5
8"3″840Rubber on Iron10-1/8"75-RIR-0830-S2″19.5
8"3″1500Rubber on Aluminum-EHT10-1/8"75-RAB-0830-S-EHT75-RAT-0830-S-EHT2″14
8"3″1600Omega10-1/8"75-UOR-0830-S75-UOT-0830-S2″19
8"3″1680Rubber on Iron-EHT10-1/8"75-RIR-0830-S-EHT75-RIT-0830-S-EHT2″19.5
8"3″2500Durastan10-1/8"75-DUR-0830-S2″16.5
8"3″2500Urethane on Iron10-1/8"75-UIR-0830-S75-UIT-0830-S2″19.5
8"3″3000Cast Iron10-1/8"75-CIR-0830-S75-CIT-0830-S2″26
8"3″4000Infinity10-1/8"75-UIB-0830-S-INF2″20
8"3″5000V-Groove Iron10-1/8"75-VIR-0830-S75-VIT-0830-S2″26
8"3″5500Forged Steel10-1/8"75-FSR-0830-S75-FST-0830-S2″26
8"3″6000Nylatron HD10-1/8"75-NYB-0830-S2″16
8"3″6000V-Groove Forged10-1/8"75-VFR-0830-S75-VFT-0830-S2″36
10"2-1/2″790Rubber on Iron11-1/2"75-RIR-1025-S2-3/16″21.5
10"2-1/2″1580Rubber on Iron-EHT11-1/2"75-RIR-1025-S-EHT75-RIT-1025-S-EHT2-3/16″21.5
10"2-1/2″2370Urethane on Iron11-1/2"75-UIR-1025-S75-UIT-1025-S2-3/16″21.5
10"2-1/2″2500Cast Iron11-1/2"75-CIR-1025-S75-CIT-1025-S2-3/16″25.5
10"2-1/2″2500Durastan11-1/2"75-DUR-1025-S2-3/16″16.5
10"3″1000Rubber on Iron11-1/2"75-RIR-1030-S2-3/16″22.5
10"3″2000Rubber on Iron-EHT11-1/2"75-RIR-1030-S-EHT75-RIT-1030-S-EHT2-3/16″22.5
10"3″2000Omega11-1/2"75-UOR-1030-S75-UOB-1030-S75-UOT-1030-S2-3/16″20
10"3″2000Rubber on Aluminum-EHT11-1/2"75-RAB-1030-S-EHT75-RAT-1030-S-EHT2-3/16″20.3
10"3″2900Durastan11-1/2"75-DUR-1030-S2-3/16″20
10"3″3000Urethane on Iron11-1/2"75-UIR-1030-S75-UIT-1030-S2-3/16″20
10"3″3400GT11-1/2"75-GTB-1030-S2-3/16″20
10"3''3400Ultra Thick Urethane11-1/2″75-UTR-1030-S75-UTT-1030-S2-3/16″25
10"3″4000Cast Iron11-1/2"75-CIR-1030-S75-CIT-1030-S2-3/16″23
10"3″5000Infinity11-1/2"75-UIB-1030-S-INF2-3/16″23
10"3″5000V-Groove Iron11-1/2"75-VIR-1030-S75-VIT-1030-S2-3/16″23
10"3″6000Forged Steel11-1/2"75-FSR-1030-S75-FST-1030-S2-3/16″41
10"3″6000Nylatron HD11-1/2"75-NYB-1030-S2-3/16″21
10"3″6000V-Groove Forged11-1/2"75-VFR-1030-S75-VFT-1030-S2-3/16″48
12"2-1/2″900Rubber on Iron13-1/2"75-RIR-1225-S2-5/8″23.5
12"2-1/2″2700Urethane on Iron13-1/2"75-UIR-1225-S75-UIT-1225-S2-5/8″23.5
12"2-1/2″3000Durastan13-1/2"75-DUR-1225-S2-5/8″20.5
12"3″1140Rubber on Iron13-1/2"75-RIR-1230-S75-RIT-1230-S2-5/8″26.5
12"3″2280Rubber on Aluminum-EHT13-1/2"75-RAB-1230-S-EHT75-RAT-1230-S-EHT2-5/8″24.5
12"3″2280Rubber on Iron-EHT13-1/2"75-RIR-1230-S-EHT75-RIT-1230-S-EHT2-5/8″26.5
12"3″3400Urethane on Iron13-1/2"75-UIR-1230-S75-UIT-1230-S2-5/8″26.5
12"3″3500Durastan13-1/2"75-DUR-1230-S2-5/8″22.5
12"3″4100Ultra Thick Urethane13-1/2"75-UTR-1230-S75-UTT-1230-S2-5/8″28
12"3″5000Cast Iron13-1/2"75-CIR-1230-S75-CIT-1230-S2-5/8″32
12"3″6000V-Groove Iron13-1/2"75-VIR-1230-S75-VIT-1230-S2-5/8″43

Caster Quality Is in the Details

Our patented Kingpinless™ single ball bearing design is precisely machined and raceway hardened to 53 Rockwell C minimum. With a standard notched raceway, the swivel section offers a 3-inch diameter raceway and half-inch ball bearings.

Choose wheels with a 1-inch roller bearing, rotating on a hardened and ground spanner bushing, or opt for three-fourths-inch tapered bearings rotating on the axle. All wheels come with lubricated fittings, ready to perform out of the box. The best brands in these demanding industries trust RWM Casters:

  • Automotive assembly lines
  • Heavy industry
  • Aerospace manufacturing
  • Aircraft maintenance
  • Towing applications
  • And more

If you’re not sure exactly which caster is right for your application, we are ready to help! Go straight to the source for your Kingpinless caster needs. For heavy-duty applications, choose the 75 Series! Contact RWM Casters at 800-634-7704 and place your order today.

Why Buy From RWM?

At RWM, we understand your need to minimize downtime for smooth business operations. All our heavy-duty casters are appropriately lubricated and inspected before being shipped to you. Upon receipt, they’re ready for your immediate use with little maintenance needed.

To offer you maximum responsiveness, minimal turnaround time, and ultimate flexibility, we stock a huge inventory of high-quality caster components. This means that we’re always able to custom manufacture casters to your precise specs. Go straight to the source, and purchase your casters from the inventor of the patented Kingpinless caster — RWM.

When you need a heavy-duty Kingpinless caster, choose the 75 Series from RWM Casters! Contact RWM online today or call us at 800-634-7704.
