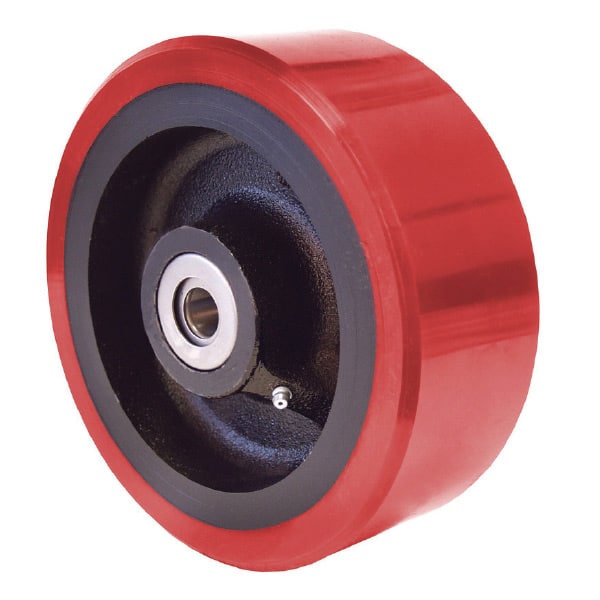

Ultra-Ride 80A Wheels
Ultra elastic high rebound soft tread polyurethane wheels are a great solution for floor protection, noise reduction and lateral grip in towed applications or where minimizing floor contact pressure is ideal. These wheels utilize the same ultra HD core as our Whisper wheels while providing even more noise reduction, shock dampening and rebound capability.
Features
Wheel Bearings | Choice of straight roller, precision tapered or sealed ball bearings |
Temperature Range | -40°F to 180°F |
Hardness | 80 Shore A Durometer |
Specifications
Ultra-Ride 80A Wheels
WHEEL DIAMETER | WHEEL WIDTH | CAPACITY | WHEEL TYPE | AXLE DIAMETER | STRAIGHT ROLLER BEARING | BALL BEARING | TAPERED BEARING | HUB LENGTH | APPROX WEIGHT |
---|---|---|---|---|---|---|---|---|---|
8" | 3″ | 2600 | 3/4″ | UWR-0830-12-80A | UWB-0830-12-80A | UWT-0830-12-80A | 3-1/2″ | 20 | |
8" | 3″ | 2600 | 1″ | UWR-0830-16-80A | UWB-0830-16-80A | UWT-0830-16-80A | 3-1/2″ | 20 | |
8" | 3″ | 2600 | 1-1/4″ | UWR-0830-20-80A | UWB-0830-20-80A | UWT-0830-20-80A | 3-1/2″ | 20 | |
10" | 3″ | 2750 | 3/4″ | UWR-1030-12-80A | UWB-1030-12-80A | UWT-1030-20-80A | 3-1/2″ | 23 | |
10" | 3″ | 2750 | 1″ | UWR-1030-16-80A | UWB-1030-16-80A | UWT-1030-16-80A | 3-1/2″ | 23 | |
10" | 3″ | 2750 | 1-1/4″ | UWR-1030-20-80A | UWB-1030-20-80A | UWT-1030-20-80A | 3-1/2″ | 23 | |
12" | 3″ | 3450 | 3/4″ | UWR-1230-12-80A | UWB-1230-12-80A | UWT-1230-12-80A | 3-1/2″ | 31 | |
12" | 3″ | 3450 | 1″ | UWR-1230-16-80A | UWB-1230-16-80A | UWT-1230-16-80A | 3-1/2″ | 31 | |
12" | 3″ | 3450 | 1-1/4″ | UWR-1230-20-80A | UWB-1230-20-80A | UWT-1230-20-80A | 3-1/2″ | 31 |
