VersaTrac 27® Series Casters
Light-Duty Casters
The VersaTrac 27® Series Casters provide solutions to a wide range of institutional caster and industrial caster wheel applications. This light- to medium-duty caster is available in multiple styles and sizes. It is offered in numerous top plates and stem choices and is available with nine standard wheel combinations. The VersaTrac 27® Series Caster is a durable and reliable caster featuring extra thick material in the top plate, yoke and raceways. The VersaTrac 27® Caster is heat treated for extended service life and comes standard with a metal dust shield. This light- to medium-duty caster series provides the ultimate in value at very competitive prices.
Features

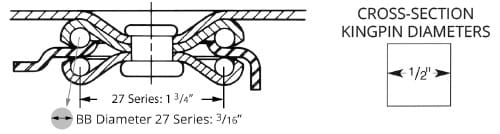

| Swivel Section | Two complete 2.75 mm shielded heat treated raceways, which prevents brinelling, provides improved swivel action and extends service life |
| Kingpin | 1/2” diameter kingpin for increased swivel strength |
| Capacity | Up to 300 lbs. |
| Axle | 3/8” diameter with lock nut |
| Finish | Zinc plated to protect against corrosion |
| Wheels | A wide variety of 3” through 5” diameter available with either roller, ball, celcon, oilite or plain bearings |

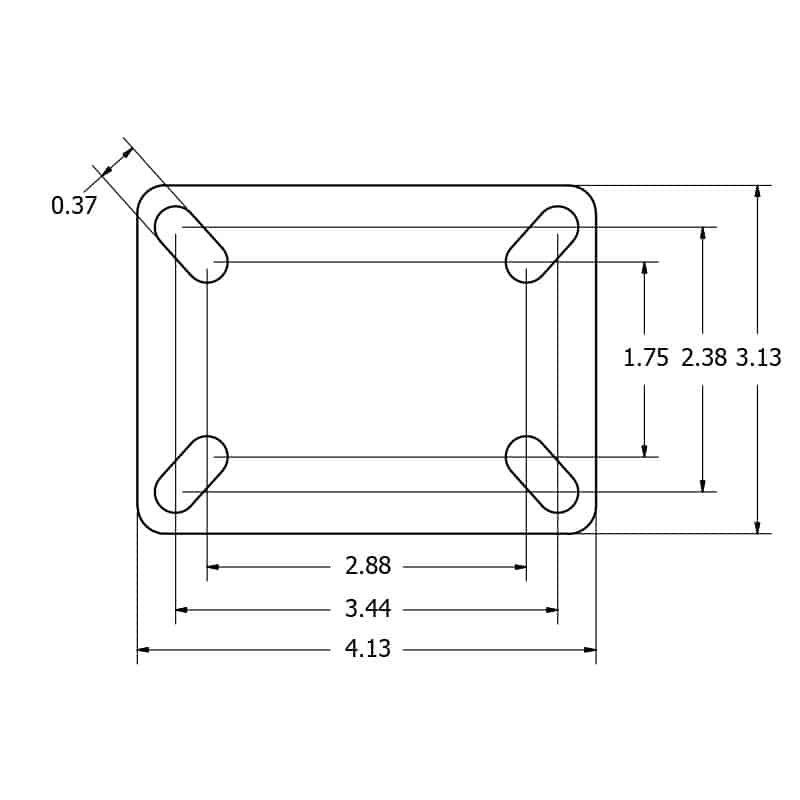

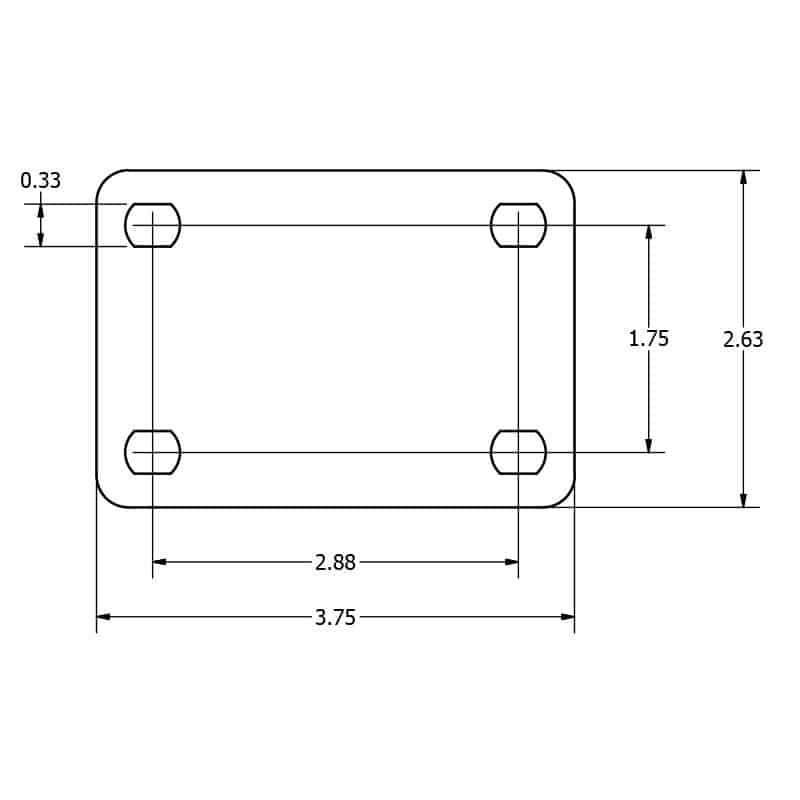

| Mounting Plate Size | Swivel: 3.5 mm x 2-5/8” x 3-3/4” Rigid: 2.75 mm x 2-5/8” x 3-3/4” |
| Bolt Hole Spacing | 1-3/4” x 2-7/8” |
| Mounting Bolt Diameter | 5/16” |
Applications
| General industry | Bins and cases |
| Medical equipment | Racks and tables |
| Laboratory | Commercial appliances |
| Residential | Retail fixtures |
| Industrial caster and manufacturing applications | Display stands |
| Food service and processing equipment | Business machines and equipment |
| Carts and dollies |
| ICWB | Field Installable Face Contact Brake* |
| TLB | Total Lock Brake* |
| WB | Side Wheel Brake* |
| TG | Thread Guard |
| WHEEL DIAMETER | WHEEL WIDTH | WHEEL TYPE | CAPACITY | OVERALL HEIGHT | ROLLER BEARING | BALL BEARING | PLAIN BEARING | SWIVEL LEAD | APPROX WEIGHT |
|---|---|---|---|---|---|---|---|---|---|
| 3" | 1-1/4" | Soft Rubber | 150 | 4-1/4" | 27-SRO-0312-S | 1-1/4" | 1.8 | ||
| 3" | 1-1/4" | Performance TPR | 190 | 4-1/4" | 27-RPB-0312-S | 27-RPC-0312-S | 1-1/4" | 1.7 | |
| 3" | 1-1/4" | Urethane Polypropylene | 225 | 4-1/4" | 27-UPB-0312-S | 27-UPC-0312-S | 1-1/4" | 1.8 | |
| 3" | 1-1/4" | Hard Rubber | 250 | 4-1/4" | 27-HRO-0312-S | 1-1/4" | 1.8 | ||
| 3" | 1-1/4" | Phenolic | 250 | 4-1/4" | 27-DUB-0312-S | 27-DUC-0312-S | 1-1/4" | 1.7 | |
| 3" | 1-1/4" | Polyolefin | 250 | 4-1/4" | 27-POB-0312-S | 27-POP-0312-S | 1-1/4" | 1.5 | |
| 3" | 1-1/4" | Cast Iron | 300 | 4-1/4" | 27-CIP-0312-S | 1-1/4" | 2.8 | ||
| 3" | 1-1/4" | High Temperature Nylon | 300 | 4-1/4" | 27-HNP-0312-S | 1-1/4" | 1.7 | ||
| 3-1/2" | 1-1/4" | Soft Rubber | 150 | 4-3/4" | 27-SRO-3512-S | 1-5/16" | 2.0 | ||
| 3-1/2" | 1-1/4" | Performance TPR | 200 | 4-3/4" | 27-RPB-3512-R | 27-RPC-3512-S | 1-5/16" | 1.9 | |
| 3-1/2" | 1-1/4" | Signature | 225 | 4-3/4" | 27-SWB-3512-S | 1-5/16" | 1.9 | ||
| 3-1/2" | 1-1/4" | Hard Rubber | 250 | 4-3/4" | 27-HRO-3512-S | 1-5/16" | 2.0 | ||
| 3-1/2" | 1-1/4" | Phenolic | 275 | 4-3/4" | 27-DUB-3512-S | 27-DUC-3512-S | 1-5/16" | 1.9 | |
| 3-1/2" | 1-1/4" | Polyolefin | 275 | 4-3/4" | 27-POB-3512-S | 27-POP-3512-S | 1-5/16" | 1.7 | |
| 4" | 1-1/4" | Soft Rubber | 180 | 5-1/4" | 27-SRO-0412-S | 1-5/16" | 2.2 | ||
| 4" | 1-1/4" | Elastic Rubber | 250 | 5-1/4" | 27-EPR-0412-S | 1-5/16" | 2.0 | ||
| 4" | 1-1/4" | Signature | 250 | 5-1/4" | 27-SWB-0412-S | 1-5/16" | 2.0 | ||
| 4" | 1-1/4" | Hard Rubber | 260 | 5-1/4" | 27-HRO-0412-S | 1-5/16" | 2.2 | ||
| 4" | 1-1/4" | Performance TPR | 275 | 5-1/4" | 27-RPB-0412-S | 27-RPC-0412-S | 1-5/16" | 1.9 | |
| 4" | 1-1/4" | Urethane Polypropylene | 275 | 5-1/4" | 27-UPB-0412-S | 27-UPC-0412-S | 1-5/16" | 2.0 | |
| 4" | 1-1/4" | Cast Iron | 300 | 5-1/4" | 27-CIP-0412-S | 1-5/16" | 3.3 | ||
| 4" | 1-1/4" | High Temperature Nylon | 300 | 5-1/4" | 27-HNP-0412-S | 1-5/16" | 1.8 | ||
| 4" | 1-1/4" | Phenolic | 300 | 5-1/4" | 27-DUB-0412-S | 27-DUC-0412-S | 1-5/16" | 2.1 | |
| 4" | 1-1/4" | Polyolefin | 300 | 5-1/4" | 27-POB-0412-S | 27-POP-0412-S | 1-5/16" | 1.6 | |
| 5" | 1-1/4" | Soft Rubber | 200 | 6-5/16" | 27-SRO-0512-S | 1-5/16" | 2.7 | ||
| 5" | 1-1/4" | Signature | 250 | 6-5/16" | 27-SWB-0512-S | 1-5/16" | 2.1 | ||
| 5" | 1-1/4" | Hard Rubber | 280 | 6-5/16" | 27-HRO-0512-S | 1-5/16" | 2.7 | ||
| 5" | 1-1/4" | Cast Iron | 300 | 6-5/16" | 27-CIP-0512-S | 1-5/16" | 3.9 | ||
| 5" | 1-1/4" | Elastic Rubber | 300 | 6-5/16" | 27-EPR-0512-S | 1-5/16" | 2.2 | ||
| 5" | 1-1/4" | High Temperature Nylon | 300 | 6-5/16" | 27-HNP-0512-S | 1-5/16" | 2.0 | ||
| 5" | 1-1/4" | Performance TPR | 300 | 6-5/16" | 27-RPB-0512-S | 27-RPC-0512-S | 1-5/16" | 2.1 | |
| 5" | 1-1/4" | Phenolic | 300 | 6-5/16" | 27-DUB-0512-S | 27-DUC-0512-S | 1-5/16" | 2.2 | |
| 5" | 1-1/4" | Polyolefin | 300 | 6-5/16" | 27-POB-0512-S | 27-POP-0512-S | 1-5/16" | 1.8 | |
| 5" | 1-1/4" | Urethane Polypropylene | 300 | 6-5/16" | 27-UPB-0512-S | 27-UPC-0512-S | 1-5/16" | 2.2 |
Benefits of VersaTrac 27® Series Casters
This industry-leading light-duty caster has a wide range of uses and beneficial aspects, most notably its versatility in uses, styles, available sizes, and economical value. It also has an optimal service life due to its heat treatment and metal dust shield.
Uses for RWM Casters’ VersaTrac 27® Series Light-Duty Caster
Selecting the proper wheel and caster is crucial to efficiently and effectively completing certain jobs. Without the correct features, your casters could suffer damage or lack the necessary safety required. To avoid the pitfalls of improper caster selection, we always aim to work with our customers closely to ensure they are making the right selection for the specifications of their intended application.
RWM Casters’ VersaTrac 27® Series Caster is a popular choice for the following applications:
- General industry
- Medical equipment transport
- Laboratory transport
- Residential applications
- Industrial caster and manufacturing uses
- Food service and processing
- Carts and dollies
- Bins and cases
- Racks and tables
- Commercial appliances
- Retail fixtures
- Display stands
- Business machines and equipment
If these light-duty casters don’t meet your unique specifications or needs, consider our custom solution offerings. RWM now offers a computer-aided design (CAD) tool that allows you to download and receive CAD files for your specific needs. The configurator is free to use, and the designs you create are available for immediate download.
Choose RWM for High-Quality Light-Duty Casters
We have been engineering quality casters and wheels since 1935, with some of our patented designs dating back to the 1970s. Through the years we have continued to provide our customers with innovative solutions to their everyday caster needs. We are recognized as the market leader for industrial casters, wheels, and other material handling solutions, and we are committed to helping you find the perfect solution for your specific application.
For additional wheel selections, application insights, and customization options, call our team today at 800-634-7704 or reach out online!
