ESD Wheels

Electrostatic Dissipative

As casters roll across surfaces an electrical charge is generated. A static dissipative material has medium resistance to electrical flow. This means a static dissipative caster wheel allows electricity to flow through the unit. The static electricity flows through the ESD material and is released into conductive flooring as opposed to being transferred through the cart and
materials being transported. RWM ESD wheels are perfect for carts used within manufacturing plants transporting sensitive goods such as computer chips, circuit boards and any other electronics requiring ESD protection. RWM ESD wheels are non-marking and will also reduce the push/pull force necessary for cart movement.

The ESD wheel is also available in rubber. VIEW ESD RUBBER WHEELS >

Wheel Bearings Sealed precision bearing
Wheel Core Material Aluminum
Temperature Range -40°to +180°F
Hardness Standard 85A (Gray)

Bearing Selection Guide

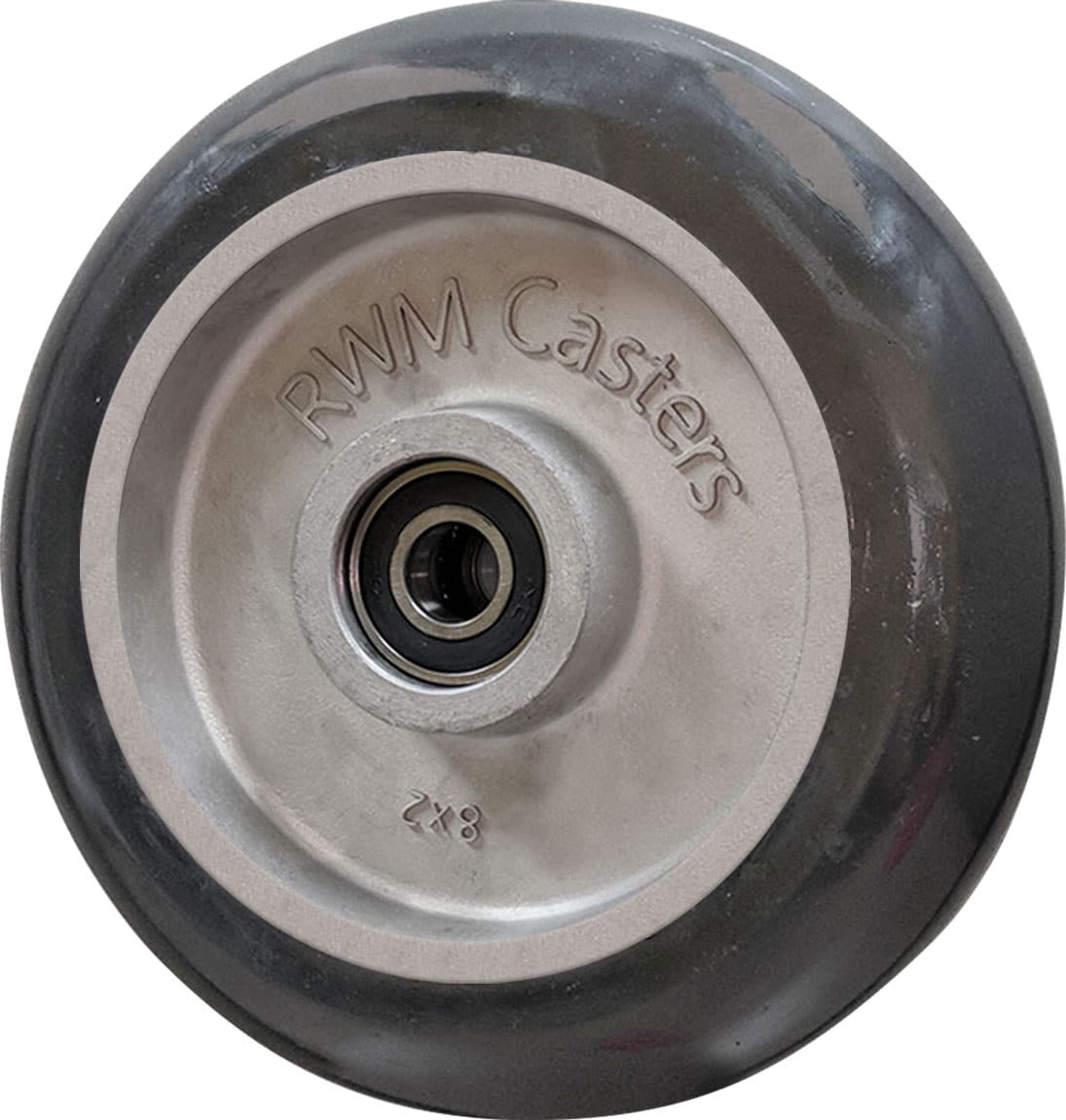

electrostatic dissipative caster product image

Wheel Diameter

Wheel Width


Axle Diameter

Sealed Precision Ball Bearing

Hub Length

Approx Weight
6″ 2″ 800 1/2″ UAB-0621-08-ESD 2-7/16″ 3.1
8″ 2″ 1000 1/2″ UAB-0821-08-ESD 2-7/16″ 4.7
